'Mis Gale', my CSY 44 is for Sale
by Elmer Gustafson
SORRY, NOW SOLD!
For more boats like this one that are currently for sale please go to
Cruising Sailboats for Sale...
Although this boat is no longer available, the pics and text are retained here for the benefit of anyone researching this particular make/model of sailboat.
Asking Price and previous owner's contact details have been deleted.
'Mis Gale', my CSY 44 is for sale. She's the mid-cockpit version built in 1978 and is currently berthed in Turtle Cay Marina on the Caribbean coast of Panama.

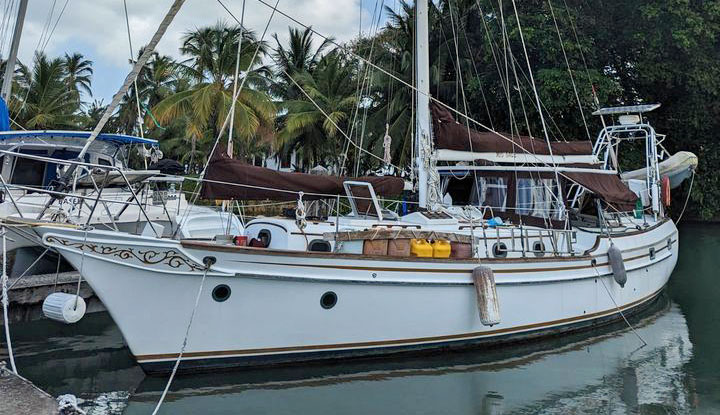

The CSY 44, 'Mis Gale'.
CSY stands for Caribbean Sailing Yachts
Published Specification for the CSY 44 (Mid-Cockpit version)
Underwater Profile: Fin keel & skeg-hung rudder
Hull Material: GRP (Fiberglass)
Length Overall: 44'0" (13.4m)
Waterline Length: 36'4" (11.0m)
Beam: 13'4" (4.1m)
Draft: 6'6" (2.0m), Shoal Draft version 4'11" (1.5m)
Rig Type: Cutter (a few were rigged as staysail ketches)
Displacement: 37,000lb (16,782kg)
Ballast: 12,000 lb (5,443 kg)
Designer: Peter Schmitt & Frank Hamlin
Builder: CSY Yacht Corp. (Caribbean Sailing Yachts)
Year First Built: 1977
Year Last Built: 1981
Number Built: 400

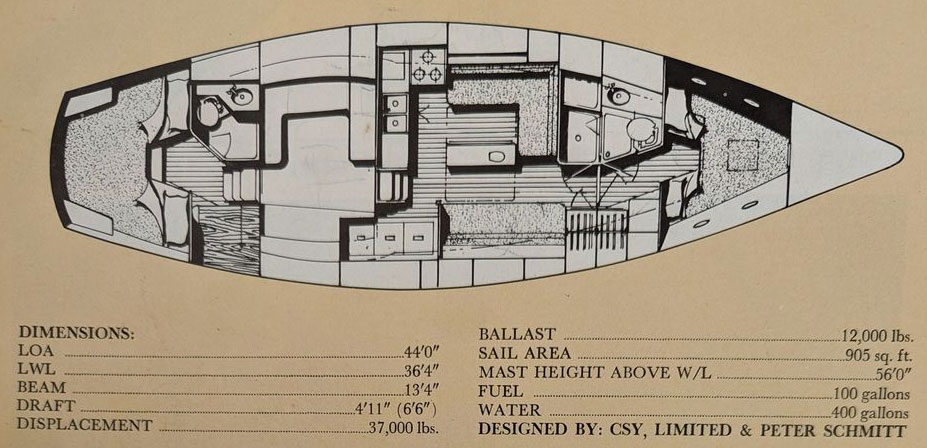

CSY 44 (Mid-Cockpit) Layout Plan
'Mis Gale's General Condition & Equipment
- Well maintained woodwork;
- Mast Height 56'0";
- Single spreader mast;
- Solid fiberglass hull (no core);
- 125% foresail (Genoa);
- Club footed staysail in good shape;
- Mainsail OK condition (1998);
- Sail cover, dodger and side cover redone in 2021;
- 400-gallon water tank (2x200 gal);
- 120-gallon fuel tank (2x50 gal + 20);
- M65 Perkins engine;
- 2001 7KW Kubota diesel generator;
- 25 gallon/hour watermaker (CAT high pressure pump, DOW Membrane 42inch);
- 10ft x 10ft cockpit with fiber glass hardtop and aluminum frame;
- Nav station with GPS, VHS radio with AIS receiver and Icon SSB;
- Aft cabin with queen size bed, private shower and head;
- Front V berth with shelf and insert storage underneath;
- Main salon with 21 cubic foot refrigerator with 2 system 110 volt and engine driven;
- Run 1 hour a day to keep things frozen at anchor;
- Shipmate 3 burner stove + oven;
- Table folds out to seat 7 people;
- Lots of storage;
- Front shower with seat and head;
- 350 ft 516 (8mm) anchor chain with Maxwell 1200w windlass;
- 60lb Manson anchor;
- Extra anchors: 40lb Danforth & 44lb Bruce;
- 8ft 7in Inman dinghy with aluminum bottom and 6hp Tohatsu outboard;
- Aluminum arch to lift the dinghy & motor;
- 100w solar panel;
- 6 x 6v in parallel series 800 Ah Battery bank;

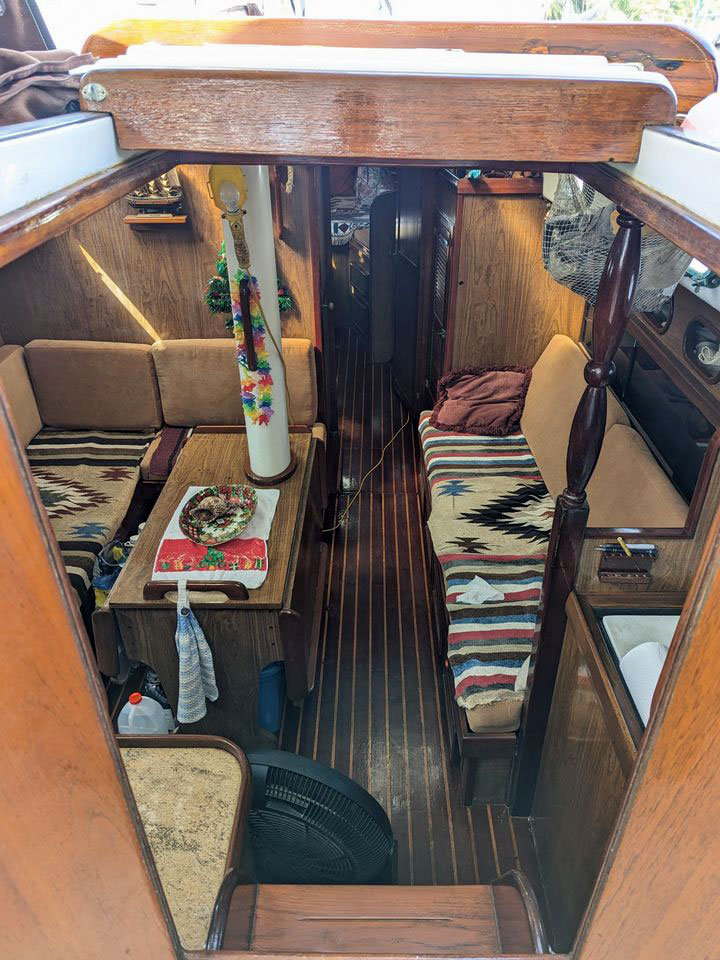

The salon

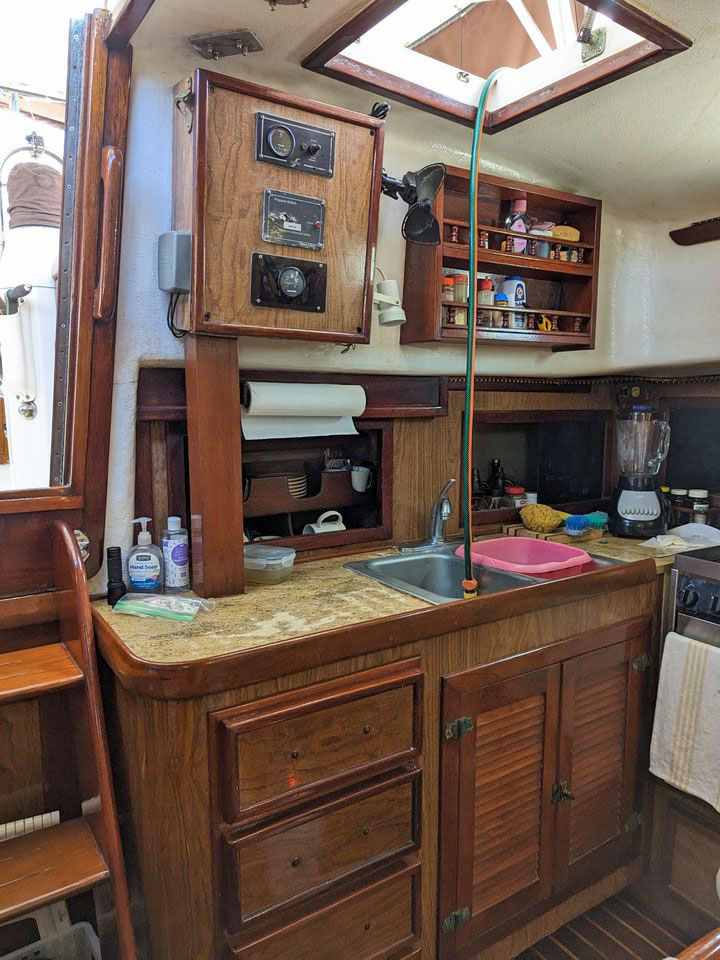

The galley is at the foot of the companionway steps on the port side

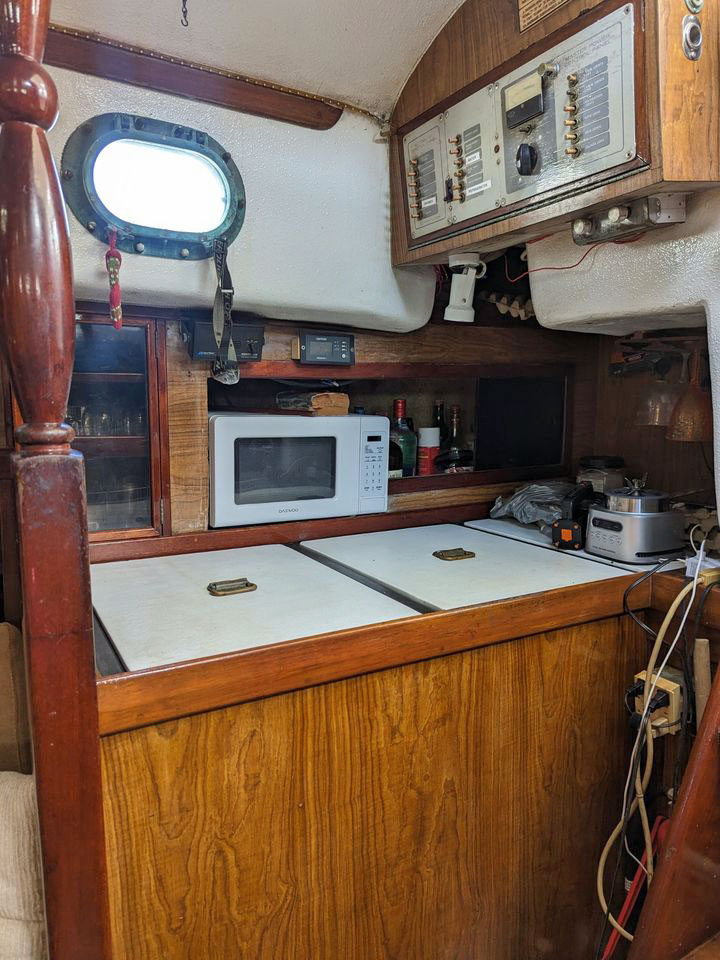

The fridge/freezer and microwave oven are at the foot of the companionway steps on the starboard side

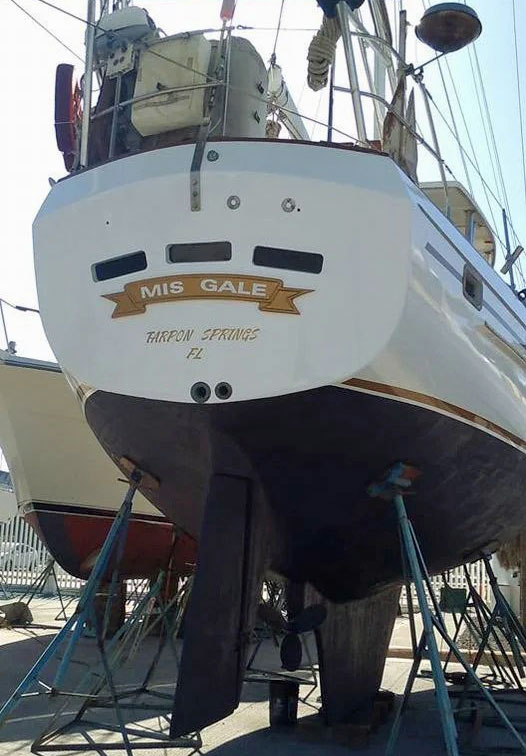

The three ports in the transom suggest there's a comfortable berth in the stern cabin...

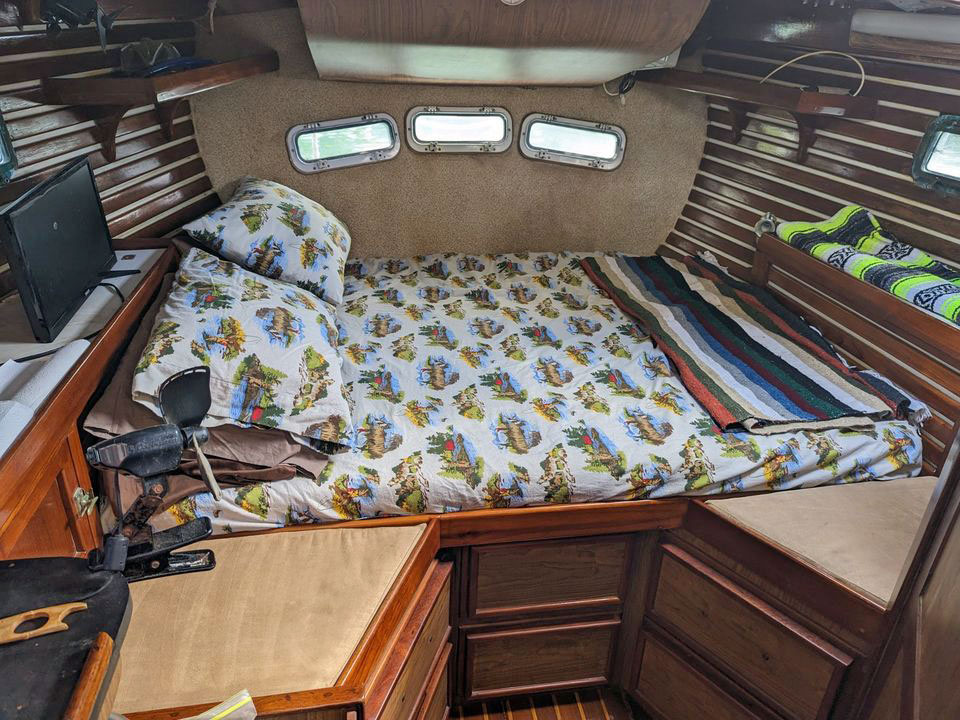

The cozy athwartship double berth in the aft cabin

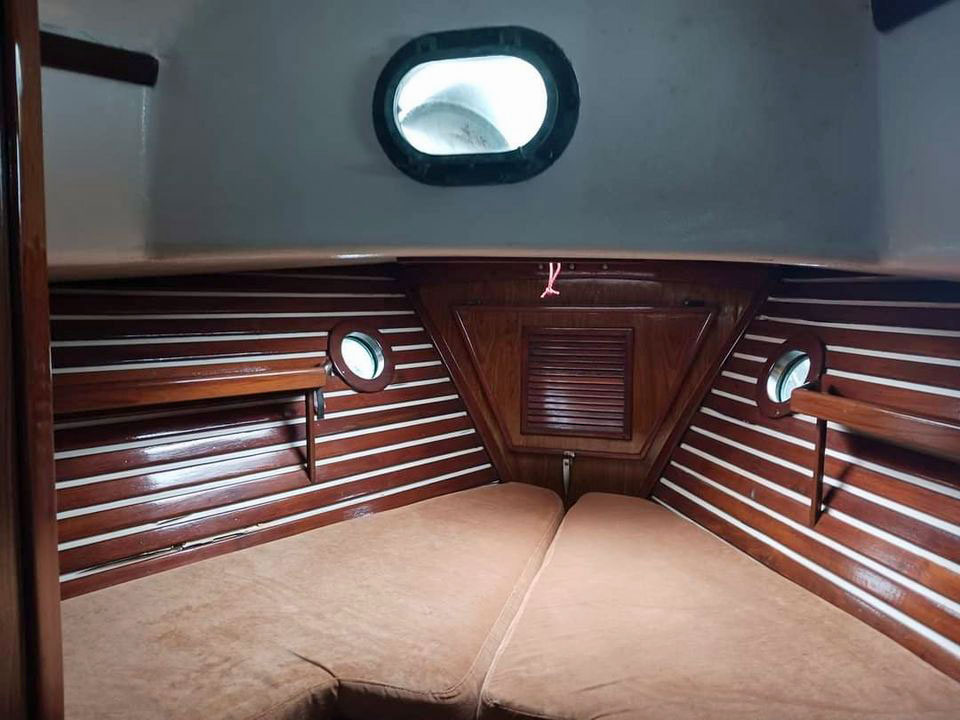

The Vee-berth in the forepeak

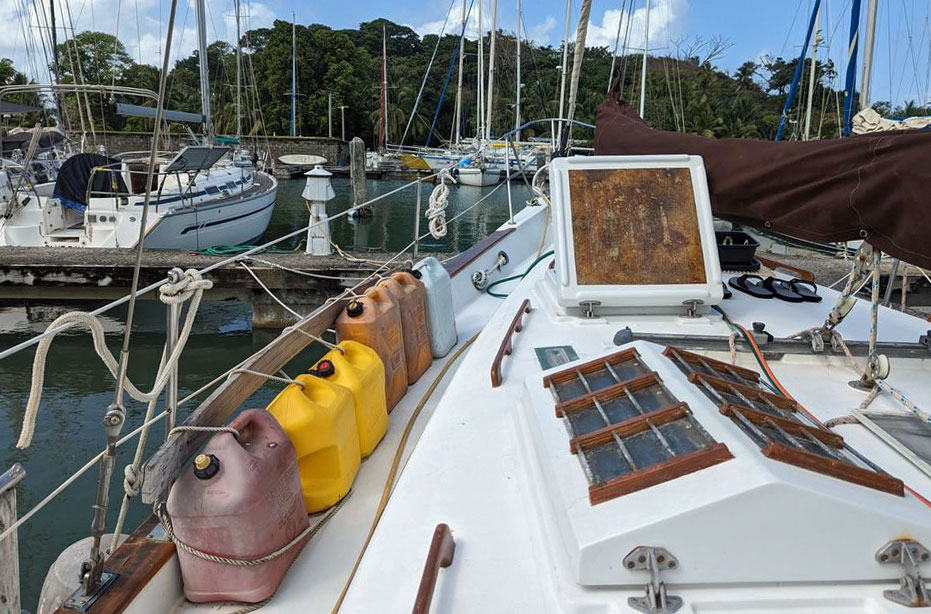

Opening hatches and deck lights provide good ventilation and light below

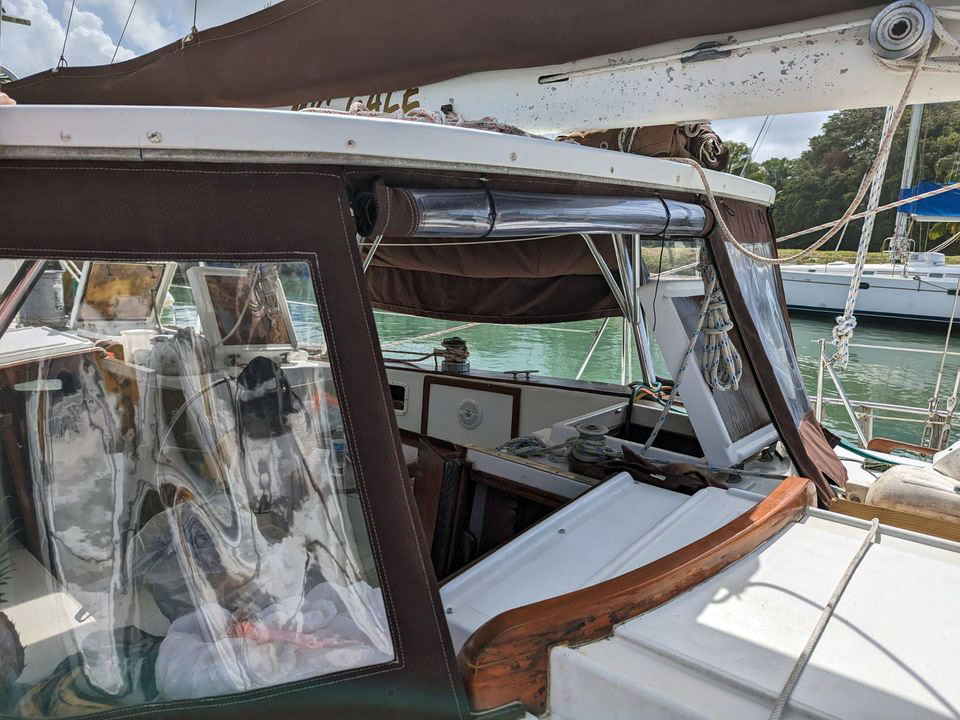

A hard dodger with an opening screen provides both shelter and ventilation for the cockpit occupants

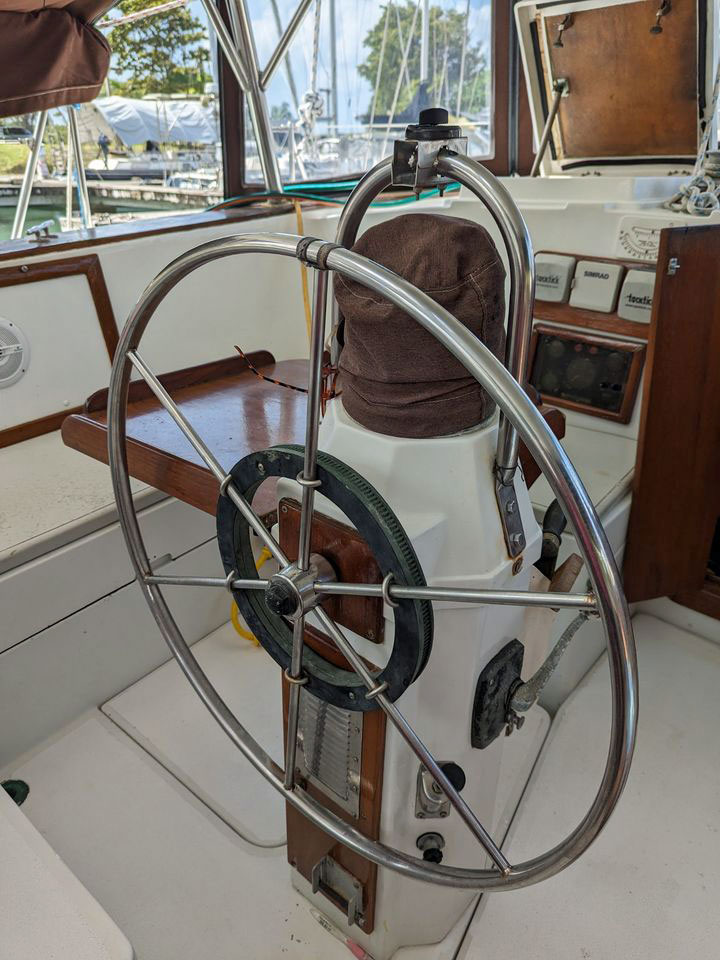

A convenient table on the binnacle for the helmsman

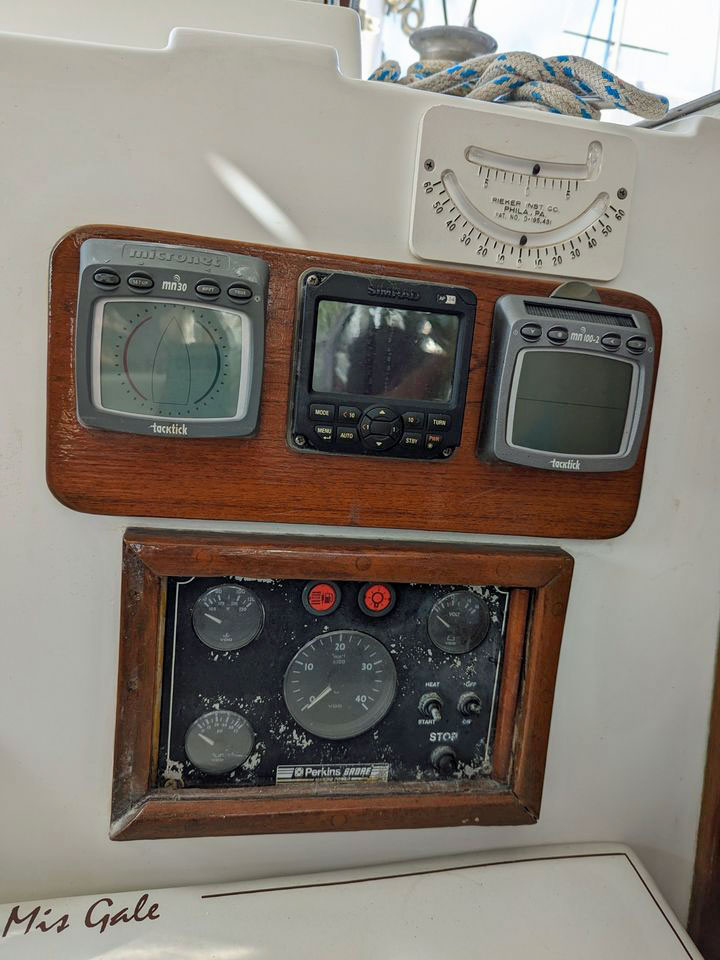

Cockpit instruments

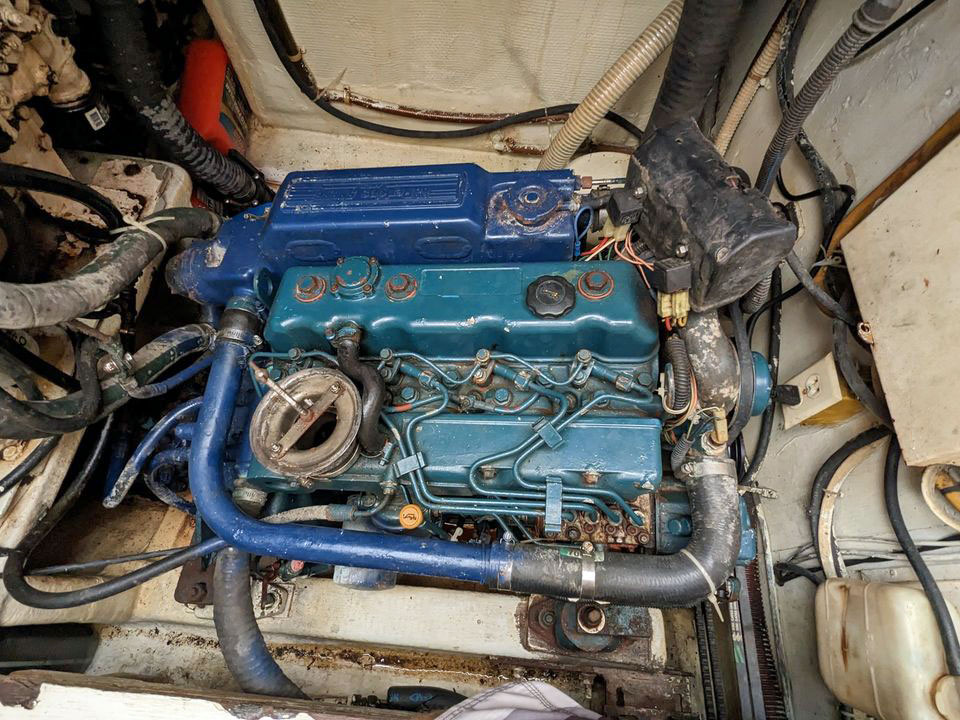

M65 Perkins diesel engine

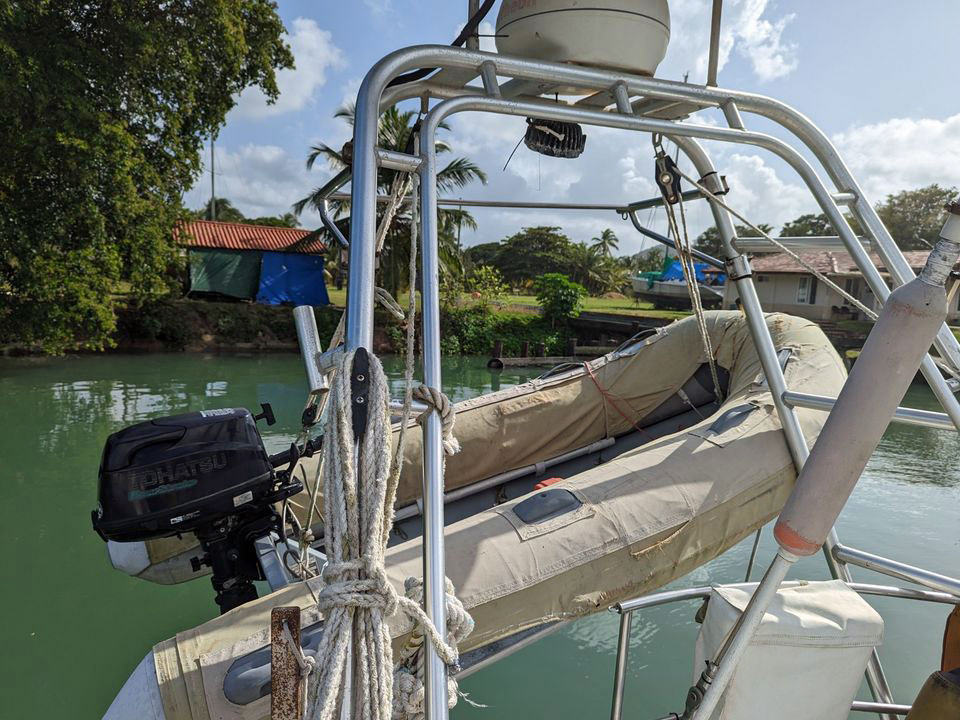

The dinghy and outboard can be hung in davits on the stern gantry
Based on Published Design Ratios for the CSY 44:
- Her Sail Area/Displacement Ratio of 12.9 suggests that she will need a stiff breeze to get her going. In light conditions, unless you've got plenty of time on your hands, motor-sailing may be the way to go.
- Her Displacement/Length Ratio of 354 tells us she is firmly in the ultra-heavy displacement category. Load her up as much as you like and her performance will be hardly affected.
- Her Ballast/Displacement Ratio of 36.9 means that the she will have a tendency to heel excessively in a gust, and may need to be reefed early to keep her sailing upright in a moderate breeze.
- Ted Brewer's Comfort Ratio of 48.3 suggests that crew comfort of a CSY 44 in a seaway is similar to what you would associate with the motion of a heavy bluewater cruising boat. Pitching and rolling will be well damped - your cup of coffee on the salon table stands a reasonable chance of staying there in most conditions.
- Her Capsize Screening Formula of 1.6 tells us that she would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.
more about Design Ratios...
-
