The Corvette 31 Sailboat
The Corvette 31, a centreboard sloop, was designed by C&C Yachts and built in Canada by Belleville Marine Yards.

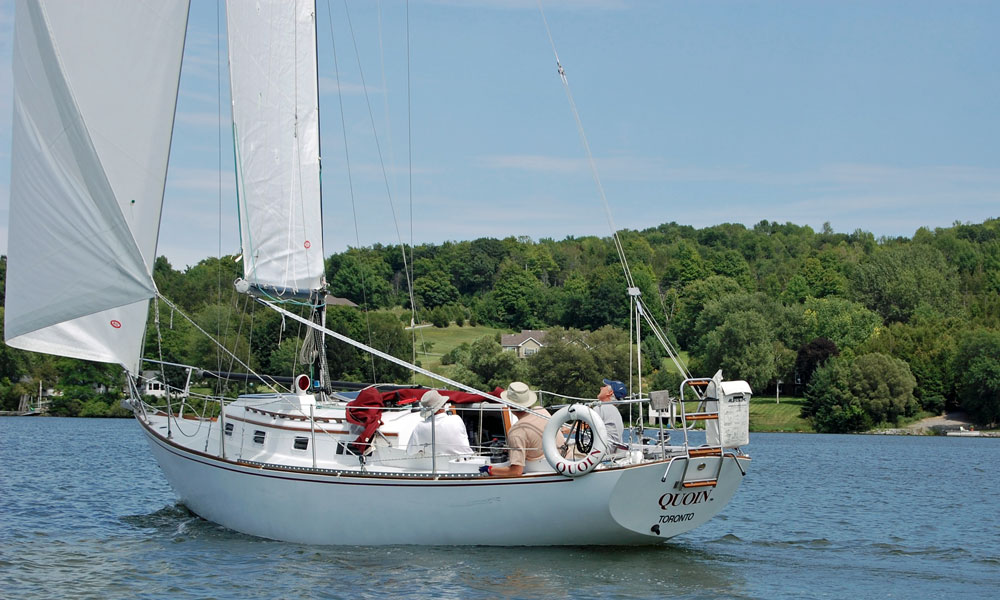

'Quoin', a C&C Corvette 31
Published Specification for the Corvette 31
Underwater Profile: Centreboard keel
Hull Material: GRP
Length Overall: 31'2" / 9.50m
Waterline Length: 22'6" / 6.9m
Beam: 9'1" / 2.8m
Draft: 7'0" / 2.1m (max), 3'3" / 1.0m (min)
Rig Type: Masthead sloop
Displacement: 8,545lb / 3,876kg
Builder: Belleville Marine Yards (Canada)
Year First Built: 1966
Year Last Built: 1971
Number Built: 171
Published Design Ratios for the Corvette 31
1. Sail Area/Displacement Ratio: 17.0
- Less than 16 would be considered under-powered;
- 16 to 20 would indicate reasonably good performance;
- Over 20 suggests relatively high performance.
2. Ballast/Displacement Ratio: 46.8
- Under 40: less stiff, less powerful
- Over 40: stiffer, more powerful
3. Displacement/Length Ratio: 335
- Under 100: Ultralight
- 100 to 200: Light
- 200 to 275: Moderate
- 275 to 350: Heavy
- Over 350: Ultraheavy
4. Comfort Ratio: 27.9
- Under 20 indicates a lightweight racing boat
- 20 to 30 indicates a coastal cruiser
- 30 to 40 indicates a moderate offshore cruising boat
- 40 to 50 indicates a heavy offshore boat
- Over 50 indicates an extremely heavy offshore boat
5. Capsize Screening Formula: 1.8
- Under 2.0 (the lower the better): Better suited for ocean passages
- Over 2.0: Less suited for ocean passages
read more about these all-revealing numbers...
Summary Analysis of the Design Ratios for the Corvette 31
1. A Sail Area/Displacement Ratio of 17.0 suggests that the Corvette 31 will approach her maximum hull speed readily and satisfy the sailing performance expectations of most cruising sailors.
2. A Ballast/Displacement Ratio of 46.8 means that the Corvette 31 will stand up well to her canvas in a blow, helping her to power through the waves.
3. A Displacement/Length Ratio of 335, tells us the Corvette 31 is clearly a heavy displacement cruising boat. You can load her down with all your cruising gear and equipment and it will hardly affect her waterline. Not an ideal choice for coastal sailing, but she'll come into her own on an offshore passage in testing conditions
4. Ted Brewer's Comfort Ratio of 27.9 suggests that crew comfort of a Corvette 31 in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not encouraging news for anyone prone to seasickness.
5. The Capsize Screening Formula (CSF) of 1.8 tells us that a Corvette 31 would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.
