Are Laminate & 3Di Sails Worth It for Your Cruiser?

In a Nutshell

Laminate & 3Di sails are a sound investment for performance-focused cruisers wanting to get the most out of their boat's speed and handling. While they're much more expensive than traditional woven sails, their ability to hold shape for longer means they're faster and more efficient, particularly when sailing upwind. This boosted performance can make passages more comfortable and quicker. However, you'll need to weigh that up against a generally shorter lifespan before delamination becomes an issue, especially if you're a serious cruiser.

What are Laminate & 3Di Sails?

While we often group them together for their high-performance qualities, laminate and 3Di sails actually have distinct construction methods that give them their unique properties. Both types of sail are designed to minimise stretch and retain their perfect aerodynamic shape, which is absolutely crucial for sailing efficiently and fast.

Laminate Sails: A Layered Construction

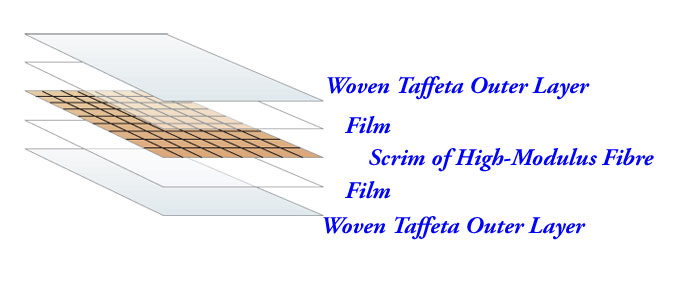

Laminate sail fabric is made from layers of film, scrim, and taffeta that are glued together under high heat and pressure to form a light, strong composite sail fabric.

• Film: This core layer, most often Mylar, provides the sail's primary stretch resistance. It's an isotropic material, so it resists stretch equally in all directions.

• Scrim: A grid of large, unwoven fibres, like aramid, carbon, or HMPE (High Modulus Polyethylene), is laid out in a specific pattern to bear the main loads. These straight fibres have immense strength, and they're often bonded with other scrims in different orientations to handle all the forces on the sail.

• Taffeta: This is a woven fabric, usually polyester, that makes up the outer surfaces of the laminate. It's there to provide durability and protect the sail from UV and chafe.

This layered construction is a lot lighter than woven sails and has a higher modulus, which means it won't stretch under load.

3Di Sails: A Seamless Composite

Moulded sails, like those made with North Sails’ proprietary 3Di technology, are the next step in sailmaking. Instead of being cut from flat panels and stitched together, these sails are built on a three-dimensional mould that replicates the precise flying shape a designer creates on a computer.

Unlike traditional laminates which use a Mylar film, 3Di sails are constructed from a spread filament tape of aramid, carbon, or HMPE fibres combined with a heat-activated adhesive. This tape is applied to the mould in a precise pattern, with each fibre oriented to align with the specific load paths on the sail. The whole structure is then fused together under high temperature and pressure, forming one seamless composite. The key advantage here is the removal of the film, which is what typically causes delamination in conventional laminates. The result is a sail that's incredibly strong, lightweight, and holds its shape with unparalleled accuracy.

Why are Laminate & 3Di Sails Good for Cruisers?

For the cruising sailor who enjoys a bit of performance, these sails offer some great benefits that go beyond just speed.

• Superior Shape Retention: This is the single biggest advantage. Unlike woven sails that get baggy and inefficient over time, laminates and 3Di sails hold their designed form. This means you'll be able to point higher and sail faster, which can shorten passage times and make beating to windward a far more comfortable experience.

• Enhanced Performance & Comfort: When you're sailing with a well-shaped sail, the boat feels more balanced and responsive. This reduces the load on the steering and crew, making for a less fatiguing passage. As a sailor who's spent countless miles on the water, I've seen first-hand how a well-set sail can transform a boat's feel and make a long day at sea infinitely more enjoyable.

• Lighter Weight: The composite construction of these sails makes them lighter than their woven equivalents of the same strength. A lighter sail is easier to hoist, douse, and handle on deck, a major consideration for cruisers who may be shorthanded. This reduced weight also lowers the boat’s overall centre of gravity, potentially making the yacht stiffer and more stable.

What are the Drawbacks and Risks?

While the benefits are clear, you'll want to think about the downsides before making an investment.

• High Initial Cost: Laminate and 3Di sails are a premium product with a price tag to match. They can cost anywhere from 50% to over 100% more than a standard woven sail of a similar size. For a cruising sailor on a budget, that's a serious expense.

• Vulnerability to UV Damage: While the outer taffeta layer provides some UV resistance, the inner film and fibres are still susceptible to sun damage. This is particularly true for racing-oriented laminates. Proper care, including using a good sail cover or packing the sail away when you're not using it, is critical to extending its life.

• Delamination Risk: The primary way a traditional laminate sail fails is through delamination—when the adhesive that holds the layers together gives up, causing the sail to fall apart. This can be caused by heat, moisture, or simply old age. While 3Di sails have largely solved this risk, it remains a key consideration for other laminate types.

A Cost-Benefit Analysis: Are They Worth the Investment?

Deciding if these sails are worth the cost for your cruiser isn't simple. The answer depends heavily on your sailing style, budget, and what's most important to you. The table below offers a simple comparison to help you decide.

For the cruiser who primarily day sails or motors, the cost just may not be worth it. However, for a cruiser who enjoys long passages and wants to get the most out of their boat's performance, investing in a high-quality set of sails can really pay off in terms of reduced passage times, better handling, and a much more enjoyable sailing experience.

Caring for Your Investment: Maintenance, Handling & Repair

Investing in high-performance sails means you've got to commit to a higher level of care. Proper maintenance and handling can add years to a sail's life, ensuring you get the most from your investment.

Daily & Weekly Care

• UV Protection is Paramount: Ultraviolet light is the number one enemy of all sails, but especially laminates. If your boat is left in the sun for extended periods, always use a proper sail cover or stack pack to protect the sail from the sun’s rays.

• Avoid Chafe: Be vigilant about chafe. Check your sails regularly for wear where they might rub against spreaders, lifelines, or rigging. Applying self-adhesive sailcloth or using leather patches can prevent small issues from becoming big problems.

• Rinse with Fresh Water: If you've been sailing in a tropical climate or have had significant salt spray on your sails, a quick rinse with fresh water can help prolong their life. Just make sure they're fully dry before packing.

Sail Handling for Longevity

• Flake, Don't Stuff: The best way to pack a laminate sail is to flake it neatly and then fold or roll it. Never stuff it into a bag. Stuffing puts uneven stress on the sail's structure and can lead to creasing, which weakens the laminate and can lead to early failure.

• Store Below Decks: Whenever you can, store your sails in a dry, dark, and well-ventilated space below decks. Don't leave them on the deck where they're exposed to moisture, heat, and UV light.

Repairs: What You Can and Can't Fix

• Delamination is Terminal: As mentioned, delamination is a structural failure. While you might be able to apply a temporary patch with sail repair tape, once the layers start to separate, the sail has reached the end of its useful life.

• Minor Damage is Repairable: Fortunately, most minor damage, such as small tears, surface chafe, and loose stitching, is easily repairable. A cruising sailor should carry a good quality sail repair kit with different weights of sail thread, needles, and repair tapes. For any significant damage, a professional sailmaker is your best resource.

For a more comprehensive look at all sail types, including woven sails, as well as a more detailed guide on sail care and maintenance, be sure to visit: A Guide to Sailboat Sails: Powering Your Passage.

Frequently Asked Questions

Note: While the general principles of laminate and 3Di sail construction are widely published, specific lifespan data for cruising use is anecdotal and can vary significantly. The lifespans provided are based on a consensus of professional opinions and are intended as a guide, not a guarantee.

Resources Used

• North Sails, "3Di Technology"
• Doyle Sails, "Stratis Sails"
• UK Sailmakers, "Sailcloth 101"
• Yachting Monthly Magazine archives (internal reference for general sail lifespan data)
