The Willard 30 Sailboat
The Willard 30, a long-keeled cutter was designed by Bill Crealock and built in the USA by The Willard Company.

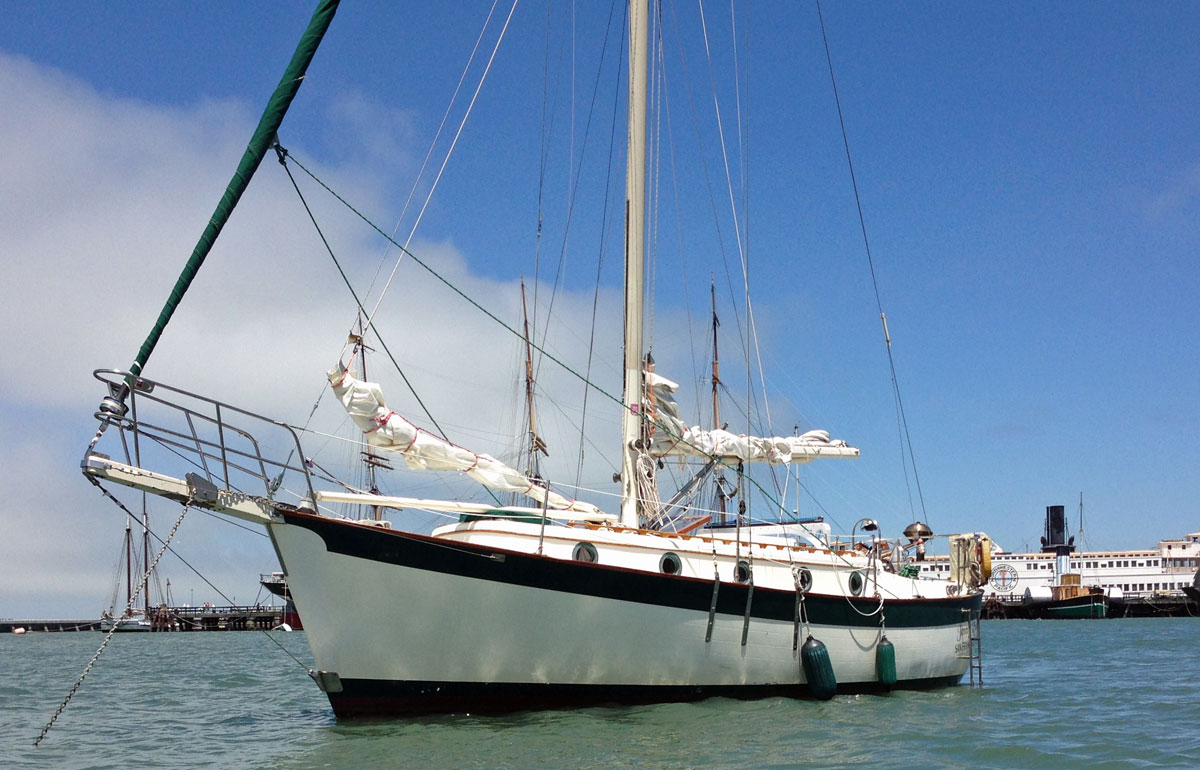

A Willard 30 cutter, sporting a bowsprit mounted furling jib and a hanked-on boomed staysail
Published Specification for the Willard 30
Underwater Profile: Long keel
Hull Material: GRP (Fibreglass)
Length Overall: 30'0" (9.14m)
Waterline Length: 27'6" (8.4m)
Beam: 10'5" (3.18m)
Draft: 4'8" (1.4m)
Rig Type: Cutter
Displacement: 17,000lb (7,711kg)
Designer: William Crealock
Builder: The Willard Company (USA)
Year First Built: 1973
Number Built: 30
Owners Association: Willard Owners
Published Design Ratios for the Willard 30
1. Sail Area/Displacement Ratio: 14.3
- Less than 16 would be considered under-powered;
- 16 to 20 would indicate reasonably good performance;
- Over 20 suggests relatively high performance.
2. Ballast/Displacement Ratio: 38.2
- Under 40: less stiff, less powerful
- Over 40: stiffer, more powerful
3. Displacement/Length Ratio: 365
- Under 100: Ultralight
- 100 to 200: Light
- 200 to 275: Moderate
- 275 to 350: Heavy
- Over 350: Ultraheavy
4. Comfort Ratio: 41.0
- Under 20 indicates a lightweight racing boat
- 20 to 30 indicates a coastal cruiser
- 30 to 40 indicates a moderate offshore cruising boat
- 40 to 50 indicates a heavy offshore boat
- Over 50 indicates an extremely heavy offshore boat
5. Capsize Screening Formula: 1.6
- Under 2.0 (the lower the better): Better suited for ocean passages
- Over 2.0: Less suited for ocean passages
read more about these all-revealing numbers...
Summary Analysis of the Design Ratios for the Willard 30
1. A Sail Area/Displacement Ratio of just 14.3 suggests that the Willard 30 will need a stiff breeze to get her going. In light conditions, unless you've got plenty of time on your hands, motor-sailing may be the way to go.
2. A Ballast/Displacement Ratio of 38.2 means that unless the bulk of the ballast is concentrated in a bulb at the foot of her keel, the Willard 30 will have a tendency to heel excessively in a gust, and she'll need to be reefed early to keep her sailing upright in a moderate breeze - and she'll be prone to rolling.
3. A Displacement/Length Ratio of 365, tells us the Willard 30 is firmly in the ultra-heavy displacement category. Load her up as much as you like and her performance will be hardly affected, not that it was ever startling. Few if any sailboats are built to this displacement category these days - but they remain popular with some long-distance sailors.
4. Ted Brewer's Comfort Ratio of 41.0 suggests that crew comfort of a Willard 30 in a seaway is similar to what you would associate with the motion of a heavy bluewater cruising boat. Pitching and rolling will be well damped - your cup of coffee on the salon table stands a reasonable chance of staying there in most conditions.
5. The Capsize Screening Formula (CSF) of 1.6 tells us that a Willard 30 would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.
