The Victoria 26 Sailboat

The Victoria 26, a long-keeled, canoe-sterned sloop was designed by Chuck Paine and built in the UK by Victoria Marine Ltd.

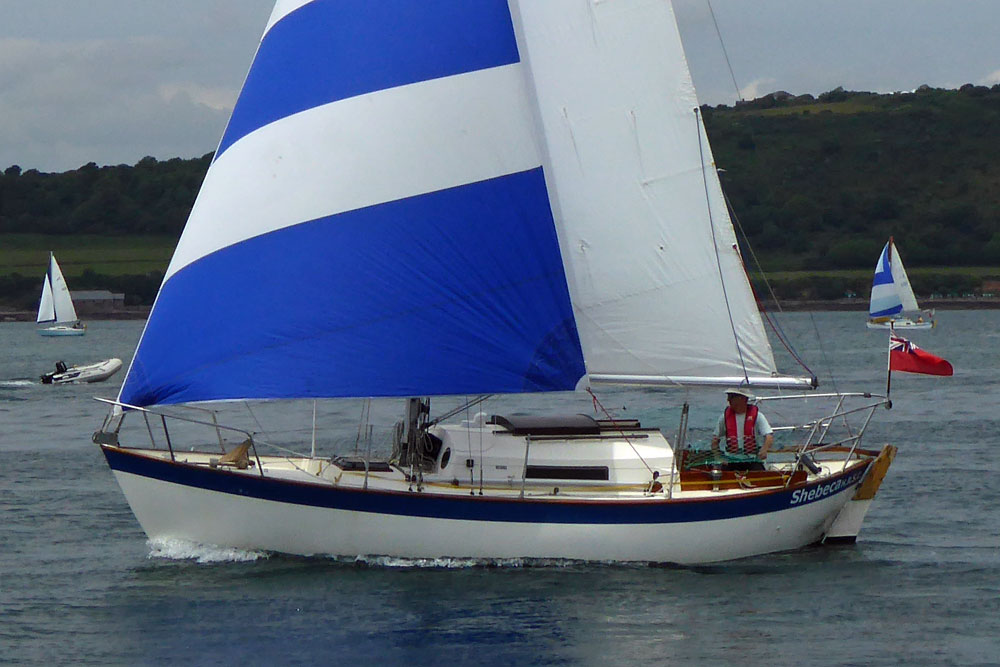

A Victoria 26 sailing off the coast of Cornwall in the UKThere's no denying that Chuck Paine's Victoria 26 is a very pretty cruising boat indeed...

Essentially the same boat as the Frances 26, but built in the UK by Victoria Marine and renamed the Victoria 26.

Published Specification for the Victoria 26

Underwater Configuration:  Long keel, canoe stern

Hull Material:  GRP (fibreglass)

Length Overall: 26' 0" / 7.92m

Waterline Length: 21' 3" / 6.48m

Beam: 8' 0" / 2.44m

Draft: 3' 10" / 1.17m

Rig Type: Cutter

Displacement: 6,800lb / 3,084kg

Designer: Chuck Paine

Builder: Victoria Marine (UK)

Year First Built: 1982

Year Last Built: 1988

Owners Association: The Victoria Shadow Association

Published Design Ratios for the Victoria 26

1. Sail Area/Displacement Ratio: 15.1

  • Less than 16 would be considered under-powered;
  • 16 to 20 would indicate reasonably good performance;
  • Over 20 suggests relatively high performance.

2. Ballast/Displacement Ratio: 51.5

  • Under 40: less stiff, less powerful
  • Over 40: stiffer, more powerful

3. Displacement/Length Ratio: 316

  • Under 100: Ultralight
  • 100 to 200: Light
  • 200 to 275: Moderate
  • 275 to 350: Heavy
  • Over 350: Ultraheavy

4. Comfort Ratio: 29.0

  • Under 20 indicates a lightweight racing boat
  • 20 to 30 indicates a coastal cruiser
  • 30 to 40 indicates a moderate offshore cruising boat
  • 40 to 50 indicates a heavy offshore boat
  • Over 50 indicates an extremely heavy offshore boat

5. Capsize Screening Formula: 1.7

  • Under 2.0 (the lower the better): Better suited for ocean passages
  • Over 2.0: Less suited for ocean passages

read more about these all-revealing numbers...

Summary Analysis of Published Design Ratios for the Victoria 26

1. A Sail Area/Displacement Ratio of just 15.1 suggests that she'll need a stiff breeze to get her going. In any other conditions, unless you've got plenty of time on your hands, motor-sailing will be the way to go.

2. A Ballast/Displacement Ratio of 51.5 means that she'll stand up well to her canvas in a blow, enabling her to power through the waves.

3. A Displacement/Length Ratio of 316, tells us she's clearly a heavy displacement cruising boat. You can load her down with all your cruising gear and equipment and it will hardly affect her waterline. Not an ideal choice for coastal sailing, but will come into her own on an offshore passage in testing conditions.

4. Ted Brewer's Comfort Ratio of 29.0 suggests that crew comfort in a seaway is similar to what you would associate with the motion of a coastal cruiser, which is not encouraging news for anyone prone to seasickness.

5. Her Capsize Screening Formula of 1.7 tells us that she would be a better choice of sailboat for ocean passage-making than one with a CS rating of more than 2.0.



Sailboats designed by Chuck Paine include:

  • Able 42
  • Annie 30
  • Apogee 50
  • Bougainvillaea 54
  • Bougainvillaea 62
  • Bowman 40
  • Bowman 42
  • Bowman 48
  • Cabo Rico 40/42
  • Cabo Rico 42 Pilot
  • Cabo Rico 56
  • Carol 24
  • Frances 26
  • Hallmark 480
  • Intrepid 40
  • Leigh 30
  • Morris 28 Linda
  • Morris 30 Leigh
  • Morris 32
  • Morris 34
  • Morris 36 Justine
  • Morris 38
  • Morris 40
  • Morris 42
  • Morris 46
  • Morris 51
  • Pisces 21
  • Victoria 26
  • Victoria 30
  • Victoria 34
  • Whistler 32 Cat Ketch

Used Victoria 26s for Sale...

Are there any used Victoria 26s or similar sailboats advertised for sale on Sailboat-Cruising.com?

Check here...
