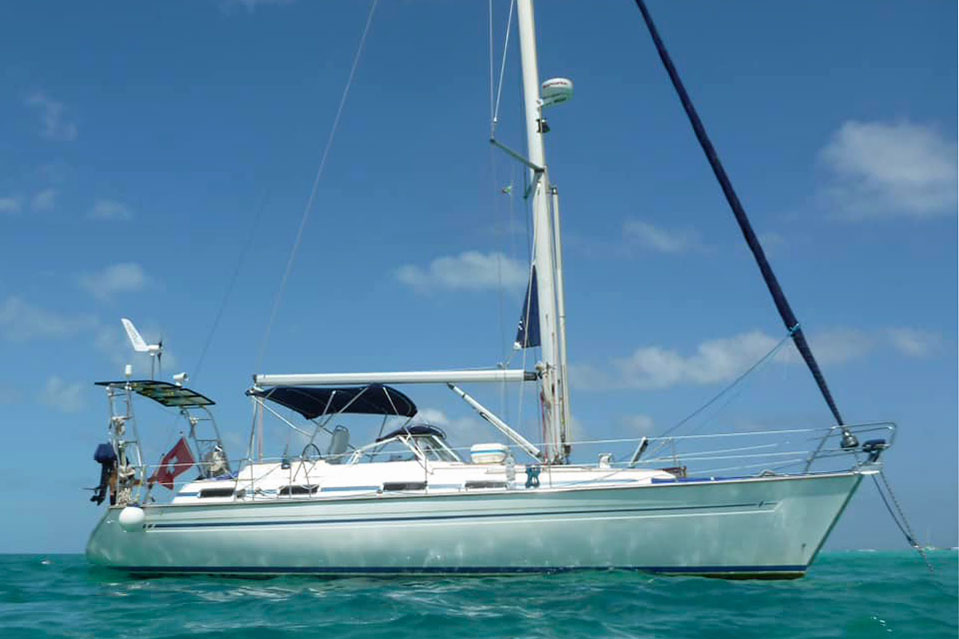

The Bavaria Ocean 40CC Sailboat
Specs & Key Performance Indicators

Published Specification for the Bavaria Ocean 40CC

Keel & Rudder Configuration: Fin keel and spade rudder.
Hull Material: GRP (Glass Reinforced Plastic).
Length Overall: 12.83m (42'1")*.
Waterline Length: 10.70m (35'11")*.
Beam: 3.98m (13'1")*.
Draft: 1.95m (6'5")*.
Rig Type: Sloop.
Displacement: 9,000 kg (19,841 lbs)*.
Ballast: 3,000 kg (6,614 lbs)*.
Sail Area: 87.00m² (937ft²)*.
Water Tank Capacity: 380 liters (100 US gallons).
Fuel Tank Capacity: 210 liters (55 US gallons).
Hull Speed: Approximately 7.9 knots.
Designer: J&J Design.
Builder: Bavaria Yachtbau GmbH.
Year First Built: 1997.
Year Last Built: 2002.
Number Built: 200-300 units.

* Used to derive the design ratios referred to later in this article - here's how they're calculated...

Sail Areas & Rig Dimensions

Sail Areas & Rig Dimensions

The individual sail areas for the Bavaria Ocean 40CC sailboat are:

• Mainsail Area: Approximately 42.0m² (452ft²).
• 100% Foretriangle Area: Approximately 45.00m² (484ft²)
• Total Sail Area (Main + 100% Foretriangle): 87.00m² (936ft²).

The rig dimensions I, J, P, E for the Bavaria Ocean 40CC sailboat are:

• I (Foretriangle Height): 15.60m (51'2").
• J (Foretriangle Base): 4.70m (15'5").
• P (Mainsail Luff Length): 14.80m (48'7").
• E (Mainsail Foot Length): 5.60m (18'4").

Published Design Ratios
The Key Performance Indicators (KPIs)

• Sail Area/Displacement Ratio (SA/D): 16.54
• Displacement/Length Ratio (D/L): 217
• Ballast/Displacement Ratio (B/D): 33.3%
• Capsize Screening Formula (CSF): 1.83
• Comfort Ratio (CR): 28.50

The design ratios offer insights into the theoretical performance and comfort characteristics of the Bavaria Ocean 40CC:

• Sail Area/Displacement Ratio (SA/D): 16.54 This ratio suggests a moderate performance cruiser. The boat will have adequate power in light to moderate winds and should be relatively easy to handle.

• Displacement/Length Ratio (D/L): 217 This falls into the "moderate displacement" category. This indicates a boat with a comfortable motion in a seaway, good carrying capacity, and capability for offshore passages. It will maintain momentum well in choppier conditions.

• Ballast/Displacement Ratio (B/D): 33.3% A B/D of 33.33% suggests good initial stability, meaning the boat will resist heeling significantly in light to moderate breezes, contributing to a comfortable and safe sailing experience.

• Capsize Screening Formula (CSF): 1.83 A value below 2.0 generally indicates good offshore stability and resistance to capsize. The Bavaria Ocean 40CC's CSF suggests it is a stable and relatively safe boat for offshore cruising, particularly in rougher conditions.

• Comfort Ratio (CR): 28.5 An MCR of 28.50 suggests a relatively comfortable ride. Boats in this range are typically good passage-makers that minimize pitching and rolling, making extended time at sea more tolerable.

In summary, based on these ratios, the Bavaria Ocean 40CC theoretically presents as a well-balanced, comfortable, and stable cruising sailboat. It is designed for passages rather than outright speed, offering a secure and relatively smooth experience in various sea conditions. Its moderate displacement and good stability ratios make it suitable for coastal cruising and potentially offshore voyages.

But the Design Ratios Don't Tell the Whole Story...

Limitations of Using Design Ratios to Define Sailing Characteristics
While design ratios offer valuable theoretical insights, they have several significant limitations in fully defining a sailboat's real-world sailing characteristics:

• Simplification of Complex Hydrodynamics: Ratios are single numbers that can't capture the intricate hydrodynamic interactions of the hull, keel, rudder, and sails. Factors like hull shape, keel profile, rudder size, and appendage drag are not accounted for.

• Static vs. Dynamic Performance: Ratios describe static properties. They don't predict how a boat will perform dynamically—how it accelerates, turns, handles waves, or performs in different wind strengths and sea states.

• Crew Skill and Trim: Actual sailing performance is heavily influenced by the crew's skill in trimming sails, steering, and understanding weather. Ratios assume optimal conditions and handling.

• Sail Plan Nuances: The "sail area" used in ratios is often a simplified sum. It doesn't differentiate between the efficiency of various sail shapes, aspect ratios, or the impact of sail trim devices.

• Construction and Stiffness: The type of construction and the stiffness of the hull and rig significantly impact performance. A stiffer boat transmits power more efficiently.

• Interior Layout and Weight Distribution: The distribution of weight within the boat (e.g., tankage, battery placement, stores) can affect trim and stability, influencing motion and comfort, which isn't captured by broad displacement figures.

• Qualitative Factors: Sailing is also about feel—how a boat communicates through the helm, its responsiveness, and the overall "sailing experience." These subjective aspects cannot be quantified by design ratios.

• Impact of Equipment and Maintenance: The condition of sails, rigging, propeller type, and hull cleanliness all significantly impact real-world performance, none of which are reflected in the design ratios.

Therefore, while design ratios are a useful starting point for comparison and provide a general understanding of a sailboat's theoretical attributes, they should always be complemented by reviewing performance reports, owner reviews, and, if possible, experiencing the boat firsthand to gain a comprehensive understanding of its true sailing characteristics.
