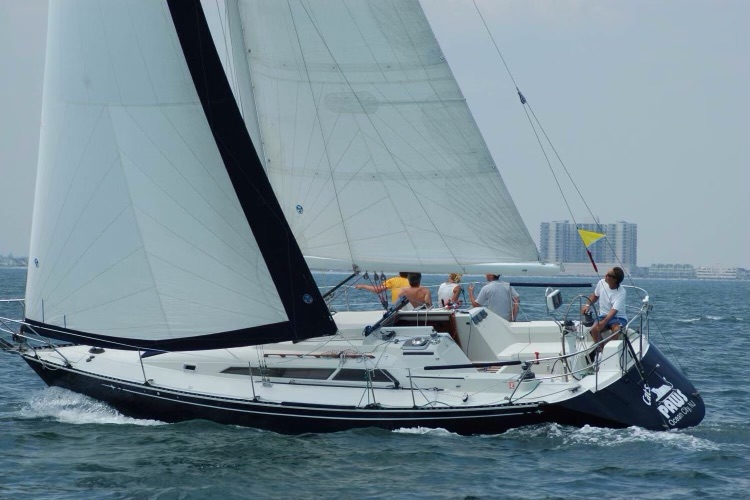

The C&C 34+, a cruiser/racer sailboat, was designed by Robert Ball and built in Canada by C&C (Cuthbertson & Cassian) Yachts.
Underwater Configuration: Wing keel and spade rudder
Hull Material: GRP (Fibreglass)
Length Overall: 35'6" (10.8m)
Waterline Length: 30'10" (9.4m)
Beam: 11'7" (3.5m)
Draft: 5'0" (1.5m)
Rig Type: Masthead sloop
Displacement: 12,000lb (5,443kg)
Ballast: Lead
Designer: Robert Ball
Builder: C&C Yachts
First Built: 1989
1. Sail Area/Displacement Ratio: 20.5
2. Ballast/Displacement Ratio: 43.5
3. Displacement/Length Ratio: 183
4. Comfort Ratio: 22.0
5. Capsize Screening Formula: 2.0
read more about these all-revealing numbers...
1. A Sail Area/Displacement Ratio of 20.5 suggests that, in the right hands, the C&C 34+ will have enough performance to leave most other sailboats of similar waterline length in her wake.
2. A Ballast/Displacement Ratio of 43.5 means that the C&C 34+ will stand up well to her canvas in a blow, helping her to power through the waves.
3. A Displacement/Length Ratio of 183, tells us the C&C 34+ is clearly a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer dramatically.
4. Ted Brewer's Comfort Ratio of 22.0 suggests that crew comfort of a C&C 34+ in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not encouraging news for anyone prone to seasickness.
5. The Capsize Screening Formula of 2.0 tells us that a C&C 34+ would not be the better choice of sailboat for ocean passage-making, owing to the increased risk of capsize in strong winds and heavy seas, when compared to a similar sailboat with a CSF of less than 2.0.
Designed by Robert Ball and built by C&C Yachts in Canada, the C&C 34+ is a versatile and attractive performer that can satisfy a wide range of sailing needs. But the C&C 34+ is not just a regular 34-footer. It's actually a modified version of the C&C 34/36, which was introduced in 1989 as a replacement for the older C&C 34. The 34/36 came in two versions: the R (racer) and the DK (deep keel). The R had a lighter displacement, a taller mast, and a deeper fin keel, while the DK had a heavier displacement, a shorter mast, and a shoal draft wing keel.
The 34+ was created by combining the best features of both versions. It has the same hull shape and rig as the R, but with a wing keel that reduces the draft to 5.5 feet. It also has a more spacious and comfortable interior than the R, with more headroom, storage, and amenities. The result is a boat that can sail fast and point high in light to moderate winds, but also offer stability and comfort in heavier conditions.
What are the pros and cons of the C&C 34+?
Like any boat, the C&C 34+ has its strengths and weaknesses. Here are some of the main ones:
The Pros:
The Cons
What are the main features of the C&C 34+?
The C&C 34+ has many features that make it an attractive sailboat for cruising and racing enthusiasts. Here are some of the most notable ones:
Hull and Deck: The C&C 34+ has a fiberglass hull and deck, with a balsa core for stiffness and insulation. The hull is molded in one piece, with a vinylester resin barrier coat to prevent osmosis. The deck is attached to the hull with bolts and adhesive, and has an aluminum toe rail for safety and durability.
The hull has a fine entry, a flat run aft, and a moderate beam, which give it a low drag and a high lift-to-drag ratio. The deck has a flush foredeck, a large anchor locker, and a molded bow sprit for an asymmetric spinnaker. The cockpit has a bridgedeck, a pedestal wheel steering, and a walk-through transom with a swim ladder.
Keel and Rudder: The C&C 34+ has a cast lead wing keel, which provides a low center of gravity and a high righting moment. The keel is bolted to the hull with stainless steel bolts, which are accessible from the bilge.
The rudder is a balanced spade type, which is mounted on a stainless steel stock and supported by two bearings. The rudder has a high aspect ratio and a low wetted surface area, which give it a good control and maneuverability.
Rig and Sails: The C&C 34+ has a masthead sloop rig, which consists of an aluminum mast and boom, stainless steel wire standing rigging, and dacron running rigging. The mast is deck-stepped, with two sets of spreaders and an internal conduit for wiring.
The boom has an internal outhaul and reefing lines, and a rigid vang. The sail inventory includes a fully battened mainsail with two reef points, a 150% genoa with roller furling, and an asymmetric spinnaker with a snuffer. The sail area is 517 square feet for the main and genoa, and 900 square feet for the spinnaker.
Engine and Propulsion: The C&C 34+ has a Yanmar 3GM30F diesel engine, which delivers 27 horsepower at 3600 rpm. The engine is located under the companionway steps, with easy access from three sides. The engine drives a two-blade folding propeller through a saildrive unit. The fuel tank has a capacity of 20 gallons, which gives the boat a range of about 150 nautical miles at 6 knots.
Electrical and Plumbing: The C&C 34+ has a 12-volt DC electrical system, with two batteries, a selector switch, and a breaker panel. The boat also has shore power capability, with an AC outlet, a battery charger, and an inverter. The boat has two water tanks, with a total capacity of 40 gallons. The boat also has a manual bilge pump, an electric bilge pump, and a pressure water system with hot and cold water.
Accommodation and Layout: The C&C 34+ has an open and spacious interior layout, with six berths in three cabins. The forward cabin has a V-berth with storage underneath, a hanging locker, and an overhead hatch. The main cabin has two settees that convert to single berths, a folding table that can seat six people, and several lockers and shelves.
The galley is located on the port side of the main cabin, and has a two-burner stove with oven, a double sink with hot and cold water, a top-loading refrigerator/freezer, and ample counter space and storage.
The navigation station is located on the starboard side of the main cabin, opposite the galley, and has a large chart table with drawers, an instrument panel, and an electrical panel.
The head is located aft of the navigation station, on the starboard side of the companionway steps, and has a marine toilet, a sink with hot and cold water, a shower head with sump pump, and storage cabinets.
The aft cabin is located on the port side of the companionway steps,and has a double berth that extends under the cockpit sole, a hanging locker and an opening port.
The above text was drafted by sailboat-cruising.com using GPT-4 (OpenAI’s large-scale language-generation model) as a research assistant to develop source material; we believe it to be accurate to the best of our knowledge.
