The Columbia 43 MkIII Sailboat
Specs & Key Performance Indicators
The Columbia 43 MkIII was designed by William Tripp Jr and built in the USA by Columbia Sailing Yachts.
The gentle sheer and flush deck of this Columbia 43 MkIII aft-cockpit cruising yacht make for a very attractive sailboat. From a purely aesthetic point of view, to me anyway - sailboat perfection.

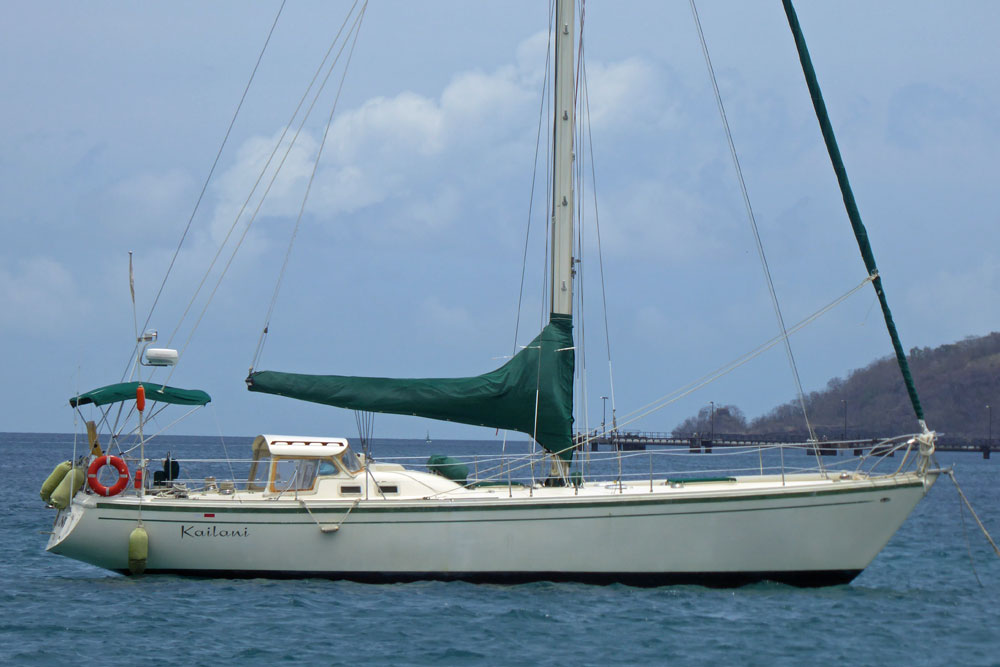

Sweet lines on 'Kailani', a Columbia 43 MkIII at anchor off St Georges, Grenada in the West Indies
Published Specification for the Columbia 43 MkIII
Underwater Profile: Fin Keel & Skeg-hung Rudder
Hull Material: GRP
Length Overall: 43'9" (13.34 m)
Waterline Length: 32' 8" (10.0 m)
Beam: 12'4" (3.76 m)
Draft: 7' 0" (2.13 m)
Rig Type: Masthead sloop
Displacement: 22,000 lb (9,769 kg)
Designer: William Tripp Jr
Builder: Columbia Sailing Yachts (USA)
Year First Built: 1973
Number Built: 96
Owners Association: Columbia Yacht Owners Association
Published Design Ratios for the Columbia 43 MkIII
1. Sail Area/Displacement Ratio: 17.5
- Less than 16 would be considered under-powered;
- 16 to 20 would indicate reasonably good performance;
- Over 20 suggests relatively high performance.
2. Ballast/Displacement Ratio: 46.8
- Under 40: less stiff, less powerful
- Over 40: stiffer, more powerful
3. Displacement/Length Ratio: 282
- Under 100: Ultralight
- 100 to 200: Light
- 200 to 275: Moderate
- 275 to 350: Heavy
- Over 350: Ultraheavy
4. Comfort Ratio: 33.3
- Under 20 indicates a lightweight racing boat
- 20 to 30 indicates a coastal cruiser
- 30 to 40 indicates a moderate offshore cruising boat
- 40 to 50 indicates a heavy offshore boat
- Over 50 indicates an extremely heavy offshore boat
5. Capsize Screening Formula: 1.8
- Under 2.0 (the lower the better): Better suited for ocean passages
- Over 2.0: Less suited for ocean passages
read more about these Key Performance Indicators...
Summary Analysis of the Design Ratios for the Columbia 43 MkIII
1. A Sail Area/Displacement Ratio of 17.5 suggests that the Columbia 43 MkIII will, in the right conditions, approach her maximum hull speed readily and satisfy the sailing performance expectations of most cruising sailors.
2. A Ballast/Displacement Ratio of 46.8 means that the Columbia 43 MkIII will stand up well to her canvas in a blow, helping her to power through the waves.
3. A Displacement/Length Ratio of 282, tells us the Columbia 43 MkIII is a moderate displacement cruiser, which means she'll carry all your cruising gear without it having a dramatic effect on her performance. Most of today's sailboats intended for offshore cruising fall into this displacement category.
4. Ted Brewer's Comfort Ratio of 33.3 suggests that crew comfort of a Columbia 43 MkIII in a seaway is similar to what you would associate with the motion of a moderate bluewater cruising boat - a predictable and acceptable motion for most seasoned sailors.
5. The Capsize Screening Formula (CSF) of 1.8 tells us that a Columbia 43 MkIII would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.
