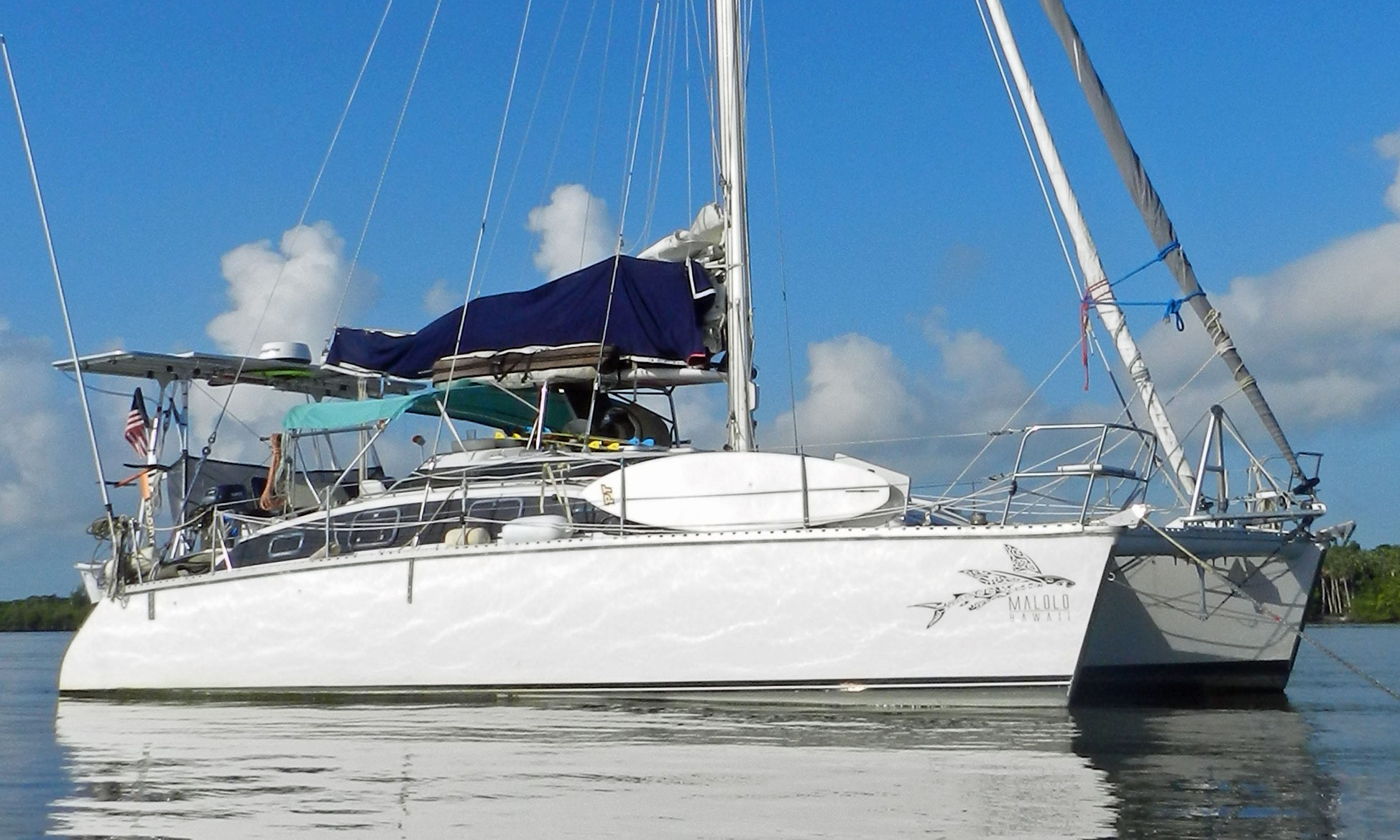

'Malolo', a PDQ 36 Catamaran for Sale

Published Specification for the PDQ 36 Catamaran

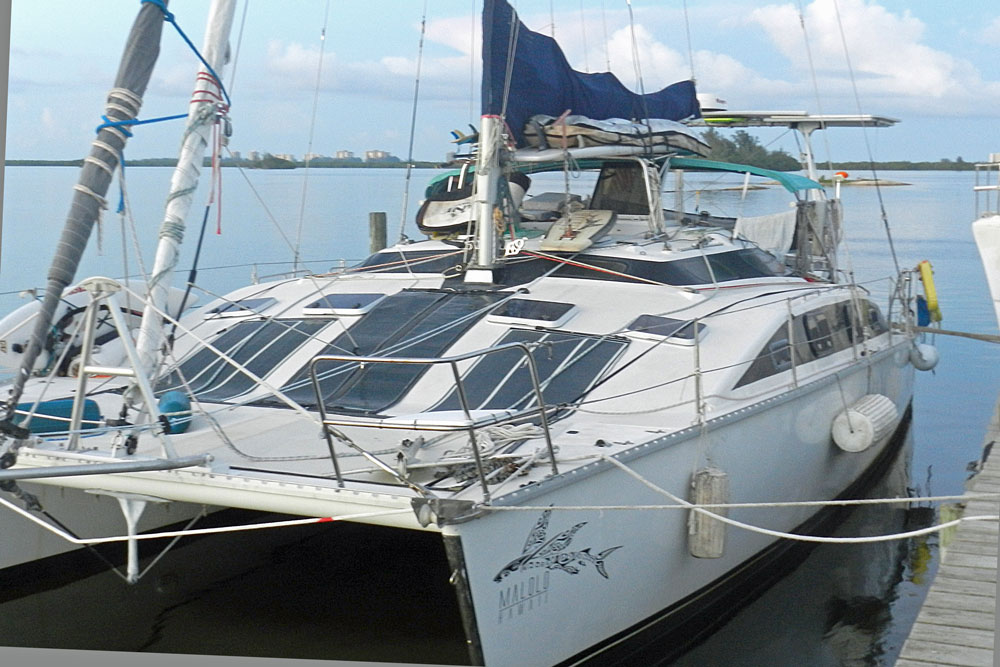

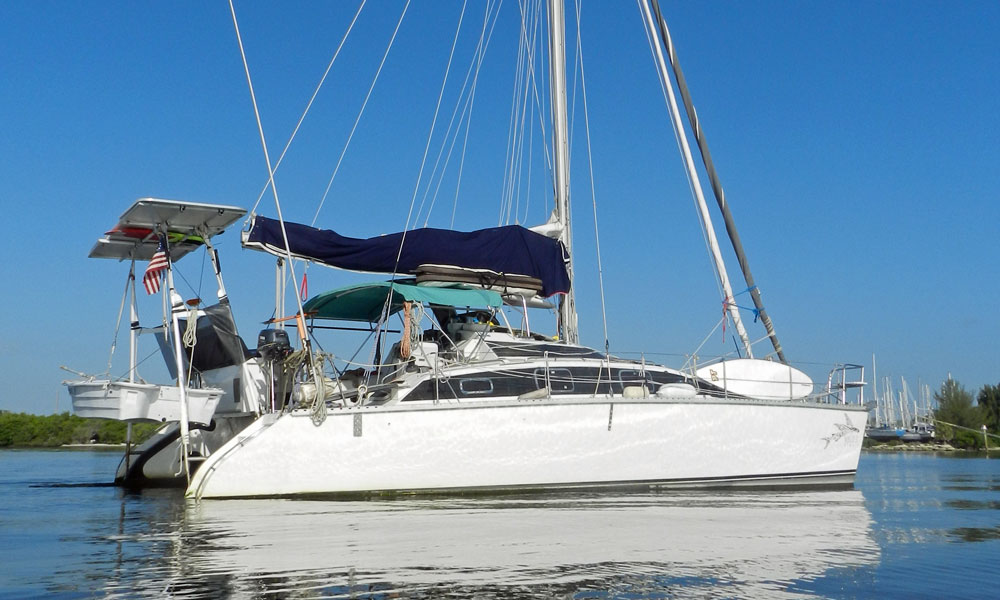

Note the solar panel array and hard dinghy in davits

Underwater Profile: Twin centreboards and spade rudders

Hull Material: GRP (Fibreglass) with Corecell foam core

Length Overall: 36'5" (11.1m)

Waterline Length: 34'4" (10.5m)

Beam: 18'3" (5.6m)

Draft: 2'10" (0.9m)

Rig Type: Fractional sloop

Displacement: 8,000lb (3,629kg)

Designer: Ted Clements & Alan Slater

Builder: PDQ Yachts (Canada)

Year First Built: 1991

Year Last Built: 2003

Number Built: 100

Hull & Deck:

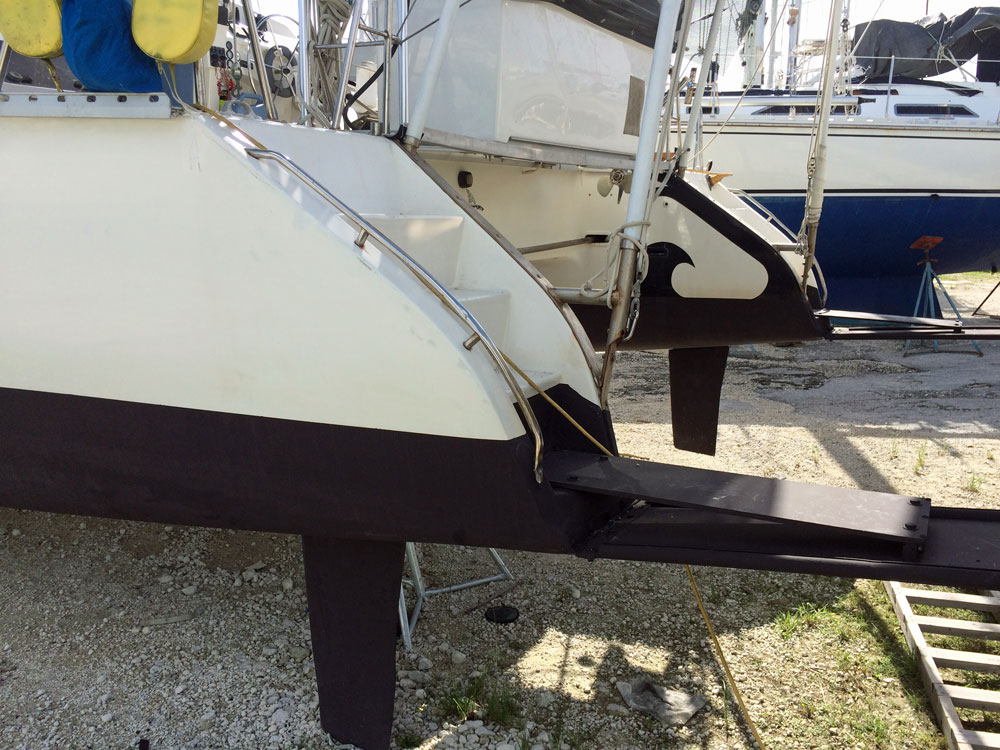

The hull extensions increase the waterline length with a proportionate increase in boat speed

• White Gelcoat Deck;
• 3' Hull Extensions on hinge which can be lifted or removed;
• Electric Windlass;
• Fortress Bow anchor: Fortress 37 with 180ft rode & chain;
• New composite and stainless Radar arch with catchment & Dingy Davits;
• Aft Boarding platform with shower connections;
• Bimini Canvas;
• Bottom Pain Recently Applied;
• Custom SUP/Surfboard Rack;
• New Dyneema Standing Rigging;
• New Rear Transom Dockbox Storage Bench with Hammock Back;
• New Trampoline.

Mechanical:

Engine: Two twin-cylinder Yamaha 9.9 4-Stroke High-Thrust Outboards and one spare;

Fuel Capacity: 65 Gallons Gas;

Cruising Speed: 7 Knots;

Max Speed: 9 Knots.

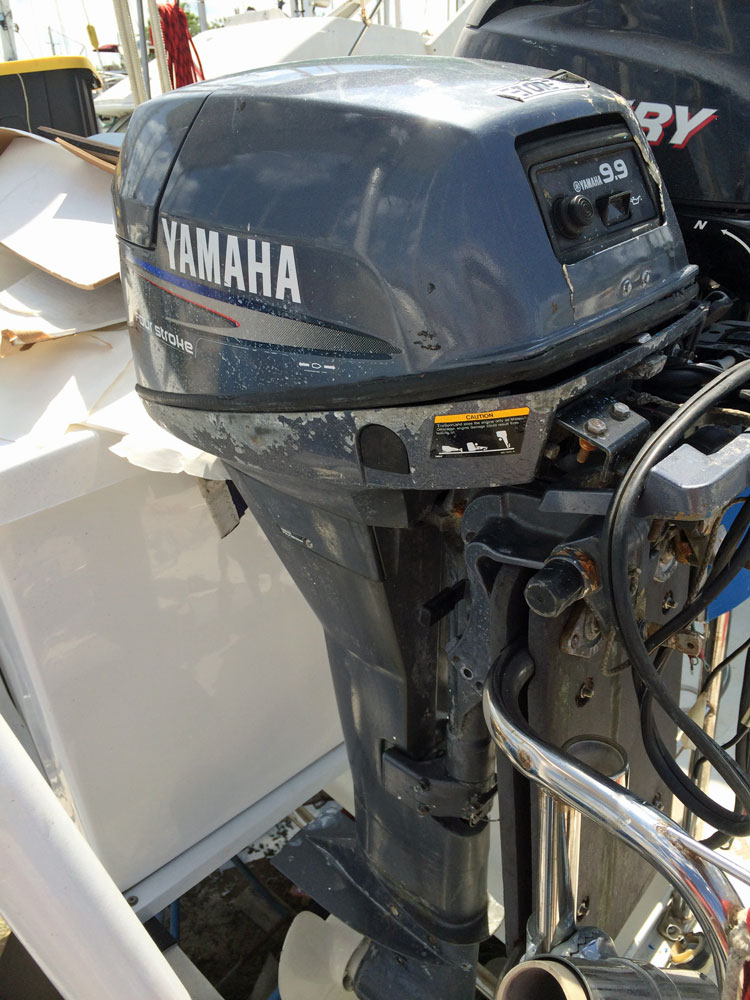

One of the two 9.9hp 4-stroke Yamaha outboard motors

Electrical Power:

• New 690w of Solar with New Outback Solar Charge Controller;
• Shore Power 30 amps;
• New Xantrex Battery Charger;
• New Inverter with timer in Galley;
• New AGM Battery Bank.

Electronics:

Raymarine: Multitouch 7" Chart Plotter - SL70C, Autopilot, Wind Speed Indicator, Tridata;

VHF Standard Horizon with Remote;

Sails & Rigging:

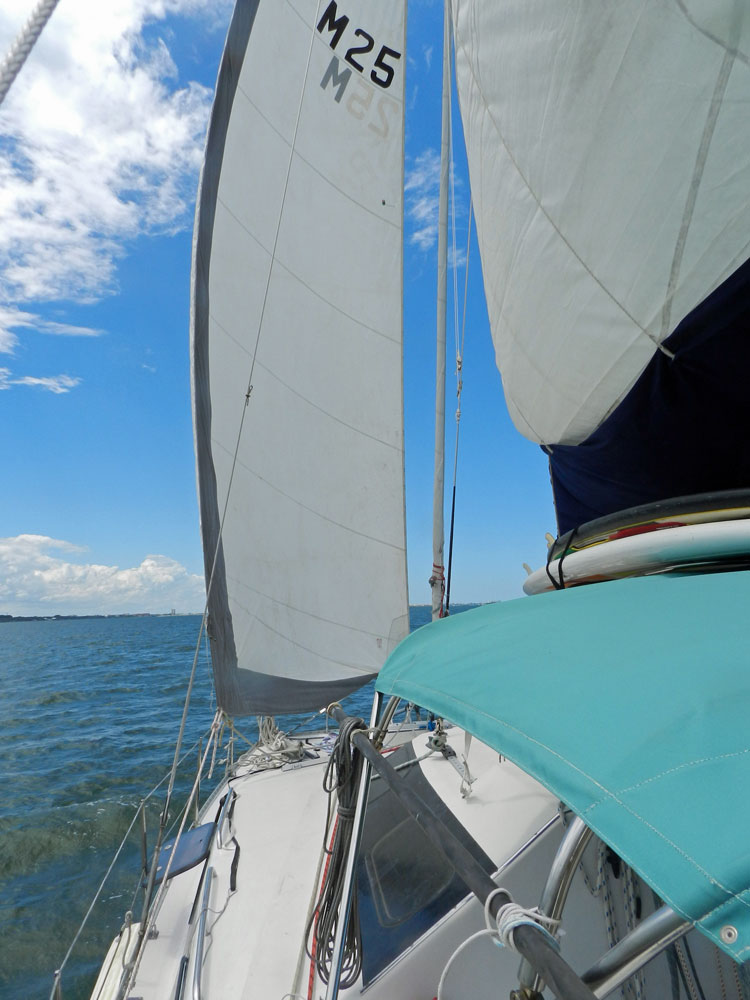

Sailing under the jib and mainsail with the genoa furled.

• Sloop rig, recently inspected;
• 40’ 10" Mast Height;
• New Continuous Furler;
• New Sheets;
• New Custom Engineered Bow Sprit;
• All lines are led back to the Helm.

Galley:

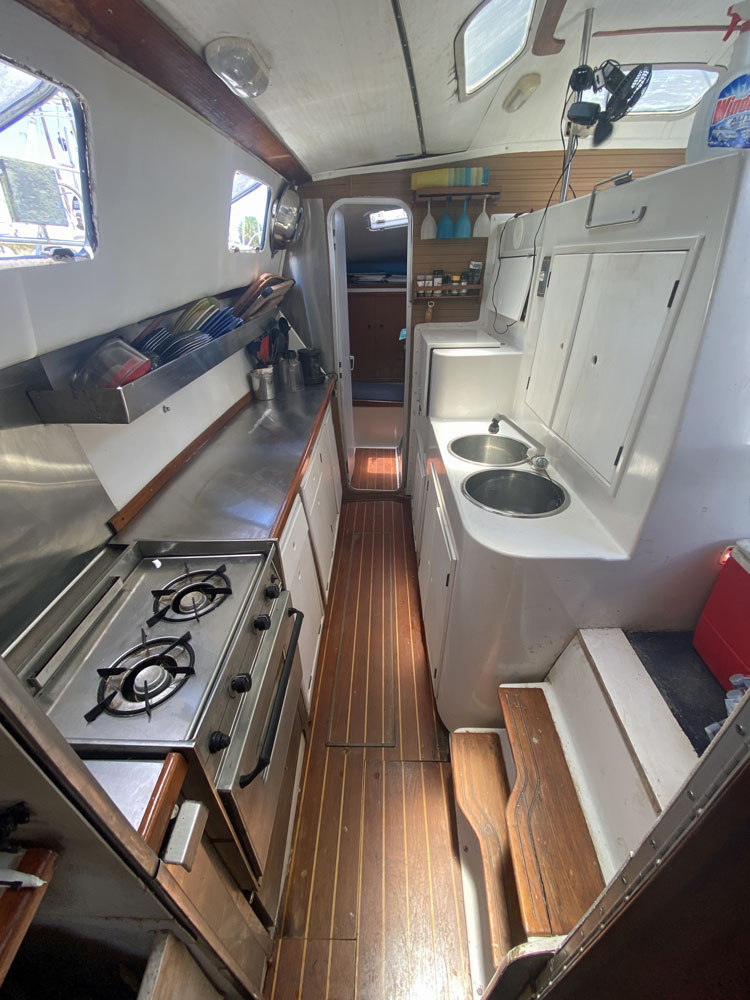

The galley, in the port hull

• Stainless Steel Counter Top;
• Custom Cabinets;
• Two 40 Gallon Fresh water tanks;
• 2-Burner Stove with Oven;
• Double sided sink;
• Large Fridge with new Engel Compressor;
• Water Heater.

Living Quarters:

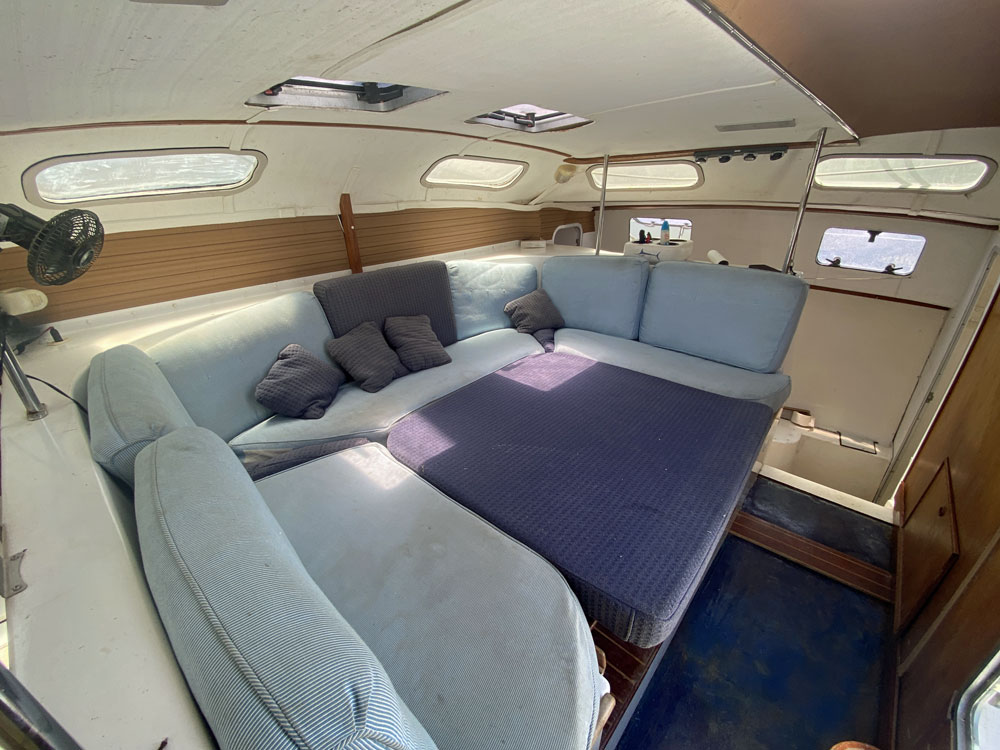

The seating arrangement in the salon convert to another double berth with an infill cushion

• 2 Bunks with Queen Size Bunks and Closets;
• One smaller double berth/storage;
• New Interior Fabric for Cushions;
• U-shaped salon that converts to additional sleeping bunk;
• Navigation Station on Starboard side;

One of the two queen-size berths

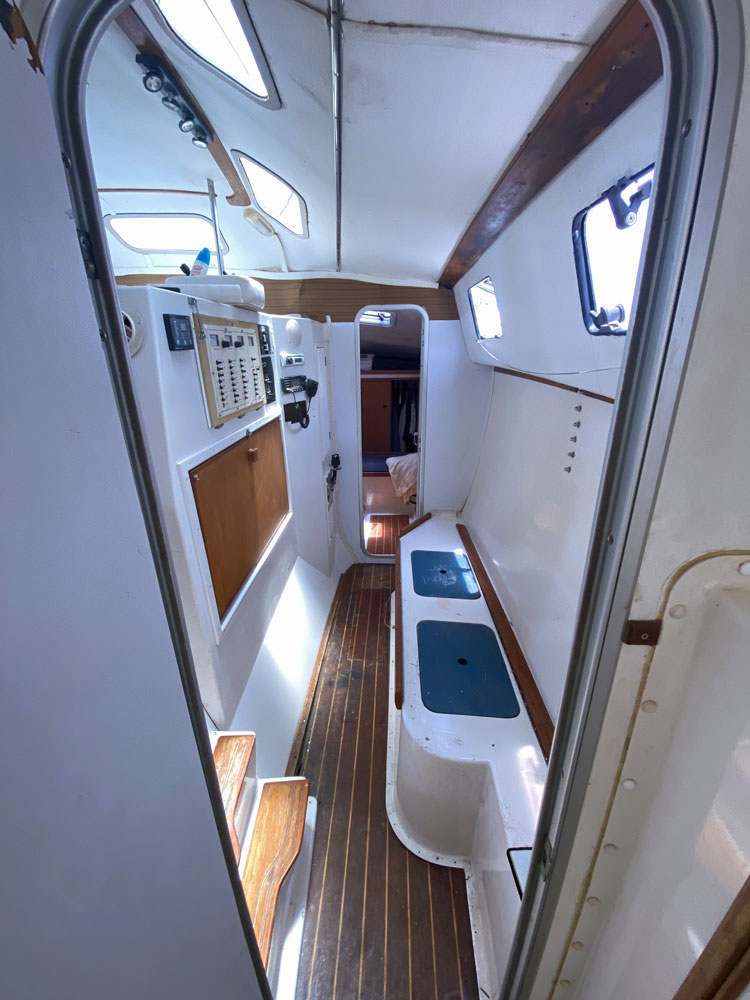

The navigation station with a fold-up chart table in the starboard hull

Head:

• Aft Head with Standing Shower;
• Head constructed out of single piece factory mold for easy cleaning;
• 20 Gallon Holding Tank Capacity.

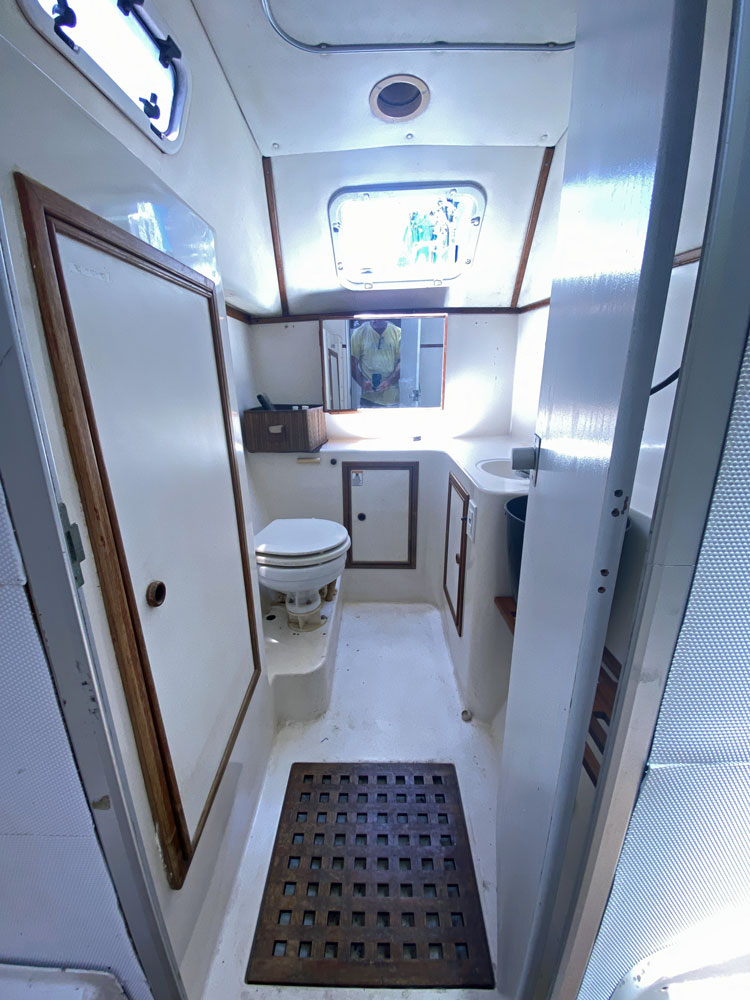

The head in the after-end of the starboard hull

Safety:

• Emergency Life Sling;
• Spot PLB;
