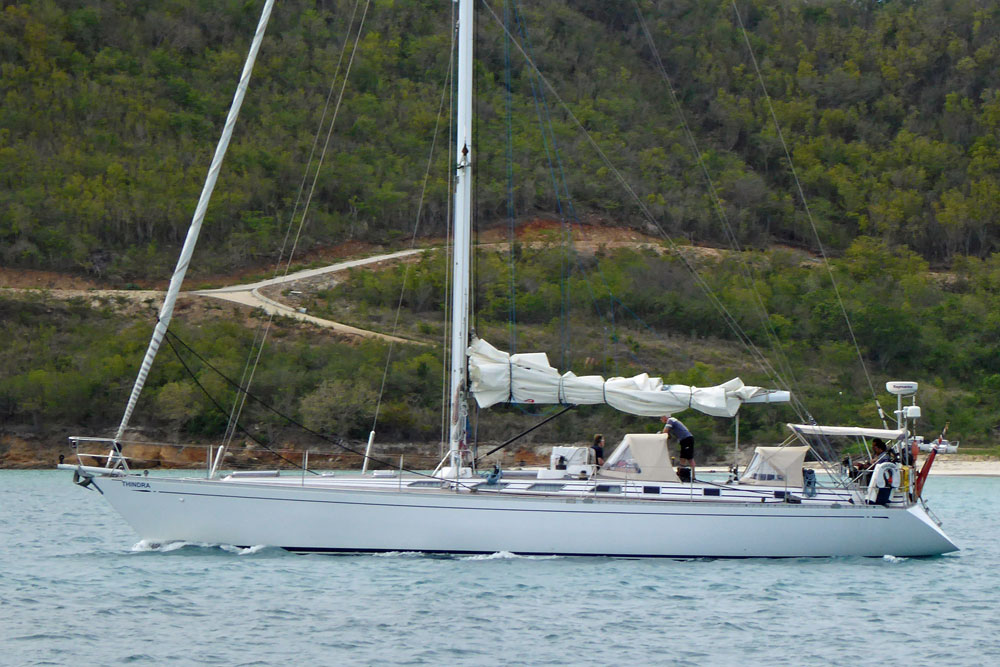

The Swan 59 Sailboat
Specs & Key Performance Indicators

Published Specification for the Swan 59

• Underwater Profile: Fin keel with spade rudder
• Hull Material: GRP (Fibreglass)
• Length Overall: 58'9" (17.9m)
• Waterline Length: 48'2" (14.7m)
• Beam: 16'5" (5.0m)
• Draft: 11'2" (3.4m)*
• Rig Type: Masthead Sloop
• Displacement: 62,400lb (28,305kg)
• Designer: German Frers
• Builder: Nautor Swan
• Year First Built: 1984
• Year Last Built: 1990
• Number Built: 21

*Centreboard option: Board down 9.9", board up 4'0"

Published Design Ratios for the Swan 59

1. Sail Area/Displacement Ratio: Not published

• Less than 16 would be considered under-powered;
• 16 to 20 would indicate reasonably good performance;
• Over 20 suggests relatively high performance.

2. Ballast/Displacement Ratio: 36.5

• Under 40: less stiff, less powerful
• Over 40: stiffer, more powerful

3. Displacement/Length Ratio: 250

• Under 100: Ultralight
• 100 to 200: Light
• 200 to 275: Moderate
• 275 to 350: Heavy
• Over 350: Ultraheavy

4. Comfort Ratio: 45.3

• Under 20 indicates a lightweight racing boat
• 20 to 30 indicates a coastal cruiser
• 30 to 40 indicates a moderate offshore cruising boat
• 40 to 50 indicates a heavy offshore boat
• Over 50 indicates an extremely heavy offshore boat

5. Capsize Screening Formula: 1.7

• Under 2.0 (the lower the better): Better suited for ocean passages
• Over 2.0: Less suited for ocean passages

Read more about these Key Performance Indicators...

Summary Analysis of the Design Ratios for the Swan 59

Download this eBook to make sure you buy wisely!

1. The Sail Area/Displacement Ratio of the Swan 59 is not published, hence we are unable to comment on this aspect of the boat's predicted performance.

2. A Ballast/Displacement Ratio of 36.5 means that a sailboat like the Swan 59 (which doesn't have its ballast concentrated in a bulb at the foot of a deep keel), is likely to benefit from being reefed early to keep her sailing upright in a moderate breeze.

3. A Displacement/Length Ratio of 250, tells us the Swan 59 is a moderate displacement cruiser, which means she'll carry all your cruising gear without it having a dramatic effect on her performance. Most of today's sailboats intended for offshore cruising fall into this displacement category.

4. Ted Brewer's Comfort Ratio of 45.3 suggests that crew comfort of a Swan 59 in a seaway is similar to what you would associate with the motion of a heavy bluewater cruising boat. Pitching and rolling will be well damped - your cup of coffee on the salon table stands a reasonable chance of staying there in most conditions.

5. The Capsize Screening Formula (CSF) of 1.7 tells us that a Swan 59 would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.
