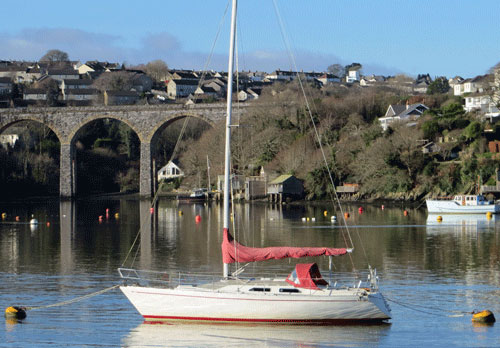

The Albin Nova Sailboat

Published Specification for the Albin Nova

Keel & Rudder Configuration: Fin keel and spade rudder.
Hull Material: Fiberglass.
Length Overall (LOA): 9.60m (31'6")*.
Waterline Length (LWL): 8.00m (26'3")*.
Beam: 3.00m (9'10")*.
Draft: 1.70m (5'7")*.
Rig Type: Masthead Sloop.
Displacement: 3,700 kg (8,157 lbs)*.
Ballast: 1,600 kg (3,527 lbs)*.
Sail Area: 50m² (538ft²)*.
Water Tank Capacity: Approximately 100 litres (26 US gallons).
Fuel Tank Capacity: Approximately 60 litres (16 US gallons).
Hull Speed: Approximately 7.1 knots.
Designer: Peter Norlin.
Builder: Albin Marine.
Year First Built: 1980.
Year Last Built: 1987.
Number Built: Approximately 350-400 units.

* Used to derive the design ratios referred to later in this article - here's how they're calculated...

Sail Areas & Rig Dimensions

Sail Areas & Rig Dimensions

The individual sail areas of the Albin Nova sailboat are:

• Mainsail Area: Approximately 22m² (237ft²).
• Genoa (150%) Sail Area: Approximately 28.0 - 30.0m² (301 - 323ft²).

The rig dimensions I, J, P, and E for the Albin Nova sailboat are approximately:

• I (Foretriangle height): 13.00m (42'3").
• J (Foretriangle base): 3.90m (12'10").
• P (Luff length of mainsail): 11.50m (37'9").
• E (Foot length of mainsail): 3.80m (12'6").

Published Design Ratios
The Key Performance Indicators (KPIs)

Using the design ratios, we can describe the theoretical sailing characteristics of the Albin Nova sailboat in detail:

• Sail Area/Displacement Ratio (SA/D) of 18.0 - 18.5: This ratio indicates that the Albin Nova has a good amount of sail area for its displacement. An SA/D ratio in this range generally suggests a boat that will be reasonably responsive in light to moderate winds. It implies a respectable performance potential, capable of moving well without being overly powered or difficult to handle in stronger breezes. This ratio points towards a boat that can offer enjoyable sailing performance for cruising and some club racing.

• Displacement/Length Ratio (D/L) of 200 - 210: This D/L ratio places the Albin Nova in the "moderate displacement" category. Boats with a D/L in this range are typically good all-around performers. They are not extremely light (which can be skittish in a seaway) nor excessively heavy (which can be slow in light air). A moderate D/L suggests a good balance between speed potential and comfortable motion, implying the Albin Nova should be capable of decent speeds for its length while also providing a relatively smooth ride, especially in choppy conditions. It's a design that suggests offshore capability without being a dedicated heavy-weather cruiser.

• Ballast/Displacement Ratio (B/D) of 43% - 45%: A B/D ratio in this range is quite healthy and indicates a good level of initial stability. A higher percentage of ballast relative to total displacement means that a significant portion of the boat's weight is dedicated to providing stability and resisting heeling. This suggests that the Albin Nova will be relatively stiff, standing up well to its canvas and maintaining a good angle of heel in a breeze, which contributes to both comfort and performance. It implies good resistance to knockdown and a reassuring feel, particularly in stronger winds.

• Capsize Screening Formula (CSF) of 1.8 - 1.9: A CSF value below 2.0 generally indicates a boat that is considered suitable for offshore passages and is less prone to capsize in rough conditions. The Albin Nova's CSF in this range suggests a design with good inherent stability against capsize, providing an additional layer of confidence for those considering longer voyages or sailing in more challenging seas. It implies a wide hull form or significant initial stability.

• Motion Comfort Ratio (MCR) of 28 - 30: The MCR is an indicator of how comfortable a boat's motion will be in a seaway, with higher numbers generally indicating a more comfortable motion. An MCR in the 28-30 range suggests that the Albin Nova will provide a moderately comfortable ride, especially in moderate seas. It's not as high as dedicated heavy-displacement offshore cruisers (which can have MCRs over 35), but it's well above lighter, more racing-oriented designs. This ratio indicates that the Albin Nova should be a reasonable choice for cruising, offering a motion that is generally acceptable without being excessively harsh or jarring.

In summary, the design ratios suggest that the Albin Nova is a well-balanced performance cruiser. It should offer good speed in varying conditions, a relatively stiff and stable platform thanks to its high ballast ratio and favorable CSF, and a reasonably comfortable motion in a seaway. It's theoretically capable of both spirited daysailing and more extended coastal or offshore cruising with a good margin of safety and comfort.

But the Design Ratios are Not the Whole Story...

While design ratios provide a valuable theoretical framework for understanding a sailboat's characteristics, they have several limitations when used to define a sailboat's sailing characteristics in detail:

• They are only theoretical indicators: Design ratios are calculations based on fundamental dimensions and weights, providing a snapshot of a boat's design philosophy. They do not account for the complexities of fluid dynamics, hull shape nuances (e.g., underwater sections, keel foil shape, rudder design), or interaction with varying sea states.

• Lack of Real-World Performance Data: Ratios don't tell you how a boat actually performs in specific wind conditions, wave patterns, or current. They don't predict upwind VMG (Velocity Made Good), downwind speed, or how well a boat tacks or gybes. Actual performance is influenced by factors like sail trim, crew skill, and the condition of the hull and sails.

• No Account for Hull Form Details: Two boats can have similar D/L ratios but vastly different hull forms. One might have a full bow and stern, while another might have fine ends. These differences significantly impact wave-making resistance, pitching motion, and overall handling, none of which are captured by the D/L ratio alone. Similarly, the specific design of the keel (e.g., high aspect ratio vs. deeper, shorter chord) and rudder (e.g., balanced spade vs. skeg-hung) greatly affects hydrodynamics, steering feel, and maneuverability, which are not reflected in basic ratios.

• Influence of Appendages: The design and interaction of the keel and rudder are crucial. A highly efficient foil shape on the keel can dramatically improve upwind performance and reduce leeway, even if the ballast ratio is moderate. The placement and aspect ratio of the rudder affect steering authority and control, particularly in strong winds or when surfing. Ratios don't distinguish between a well-designed, efficient foil and a less optimal one.

• Variations in Construction and Quality: The actual build quality, stiffness of the hull, and integrity of the rigging can significantly impact how a boat performs and feels. A boat with a theoretically good design ratio might perform poorly if its construction is flimsy or if there is excessive flex in the hull or rig.

• Sail Plan Nuances: While the SA/D ratio provides a general idea of power, it doesn't detail the sail plan's balance, the center of effort relative to the center of lateral resistance, or the efficiency of individual sails. A well-designed sail plan with efficient sails can outperform a boat with a higher SA/D but poorly shaped or old sails.

• Ergonomics and Onboard Systems: Ratios say nothing about the ergonomics of the cockpit, the ease of handling lines, the quality of deck hardware, or the functionality of interior systems. These factors significantly impact the sailing experience and safety.

• Subjectivity of "Comfort": While the Motion Comfort Ratio attempts to quantify comfort, comfort is highly subjective. What one sailor finds comfortable, another might find jarring. The frequency and amplitude of motion, which are influenced by many factors beyond what the MCR captures, play a big role.

• No Consideration for Human Factors: The ultimate sailing characteristics are often defined by the interaction between the boat and its crew. Ease of reefing, visibility from the helm, and the layout of controls all influence how effectively a boat can be sailed, especially in challenging conditions.

In conclusion, design ratios are excellent starting points for preliminary assessment and comparison of sailboats, offering a glimpse into their theoretical strengths. However, to truly understand a sailboat's detailed sailing characteristics, one must consider a holistic view that includes specific hull and appendage designs, sail plan specifics, build quality, and ultimately, real-world sailing experience and performance data.
