The Oyster 62 Sailboat
Specs & Key Performance Indicators

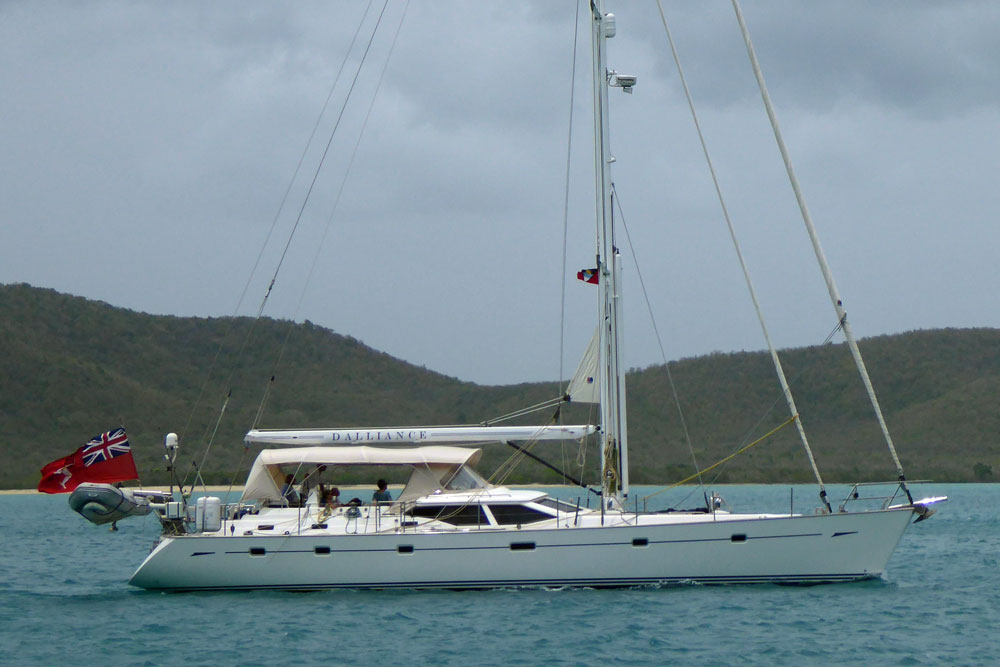

The Oyster 62, a light displacement centre-cockpit cutter, was designed by Rob Humphreys and built in the UK by Oyster Marine Ltd.

Published Specification for the Oyster 62

  • Underwater Configuration: Fin keel with bulb & spade rudder
  • Hull Material: GRP (Fibreglass)
  • Length Overall: 63'4" (19.3m)
  • Waterline Length: 55'2" (16.8m)
  • Beam: 17'9" (5.4m)
  • Draft: 8'6" (2.6m)*
  • Rig Type: Cutter
  • Displacement: 70,547lb (32,000kg)
  • Designer: Rob Humphreys
  • Builder: Oyster Marine Ltd
  • Year First Built: 2004
  • Owners Association: Oyster Owners Club

*Shoal draft version also available drawing 6'6" (2.0m)

Published Design Ratios for the Oyster 62

1. Sail Area/Displacement Ratio: 19.5

  • Less than 16 would be considered under-powered;
  • 16 to 20 would indicate reasonably good performance;
  • Over 20 suggests relatively high performance.

2. Ballast/Displacement Ratio: 29.4

  • Under 40: less stiff, less powerful
  • Over 40: stiffer, more powerful

3. Displacement/Length Ratio: 188

  • Under 100: Ultralight
  • 100 to 200: Light
  • 200 to 275: Moderate
  • 275 to 350: Heavy
  • Over 350: Ultraheavy

4. Comfort Ratio: 41.2

  • Under 20 indicates a lightweight racing boat
  • 20 to 30 indicates a coastal cruiser
  • 30 to 40 indicates a moderate offshore cruising boat
  • 40 to 50 indicates a heavy offshore boat
  • Over 50 indicates an extremely heavy offshore boat

5. Capsize Screening Formula: 1.7

  • Under 2.0 (the lower the better): Better suited for ocean passages
  • Over 2.0: Less suited for ocean passages

Read more about these Key Performance Indicators...

Summary Analysis of the Design Ratios for the Oyster 62

1. A Sail Area/Displacement Ratio of 19.5 suggests that the Oyster 62 will, in the right conditions, approach her maximum hull speed readily and satisfy the sailing performance expectations of most cruising sailors.

2. A Ballast/Displacement Ratio of 29.5 would usually mean that the Oyster 62 would have a tendency to heel uncomfortably in a gust, and need to be reefed early to keep her sailing upright in a moderate breeze.

However, as she has much of her ballast concentrated in a bulb at the foot of her keel, she's likely to be considerably stiffer than her published Ballast/Displacement Ratio might suggest.

3. A Displacement/Length Ratio of 188, tells us the Oyster 62 is a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer to a degree.

4. Ted Brewer's Comfort Ratio of 41.2 suggests that crew comfort of an Oyster 62 in a seaway is similar to what you would associate with the motion of a heavy bluewater cruising boat. Pitching and rolling will be well damped - your cup of coffee on the salon table stands a reasonable chance of staying there in most conditions.

5. The Capsize Screening Formula (CSF) of 1.7 tells us that an Oyster 62 would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.

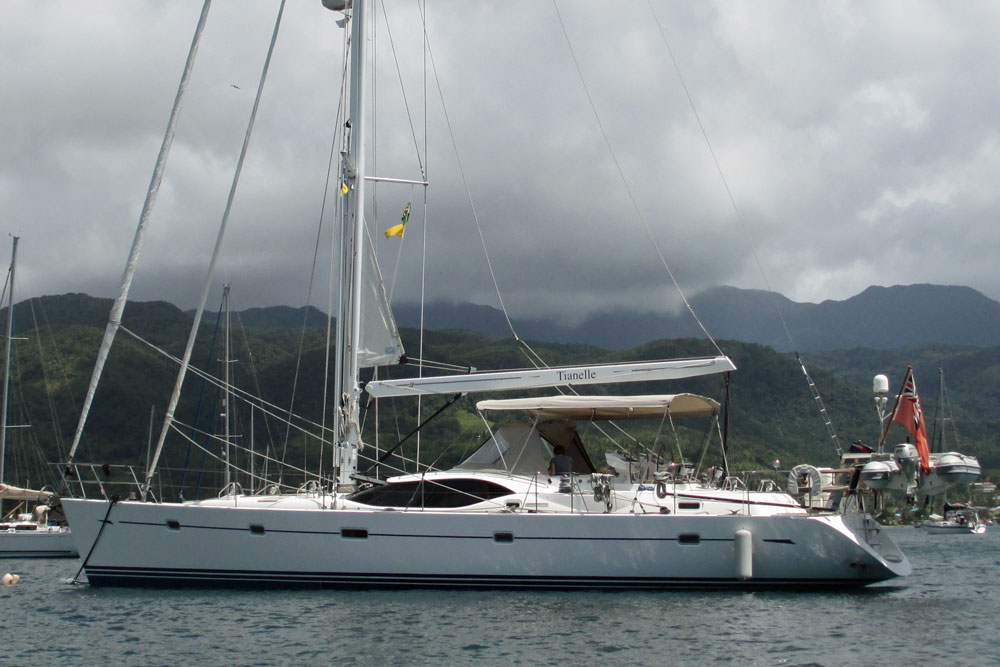

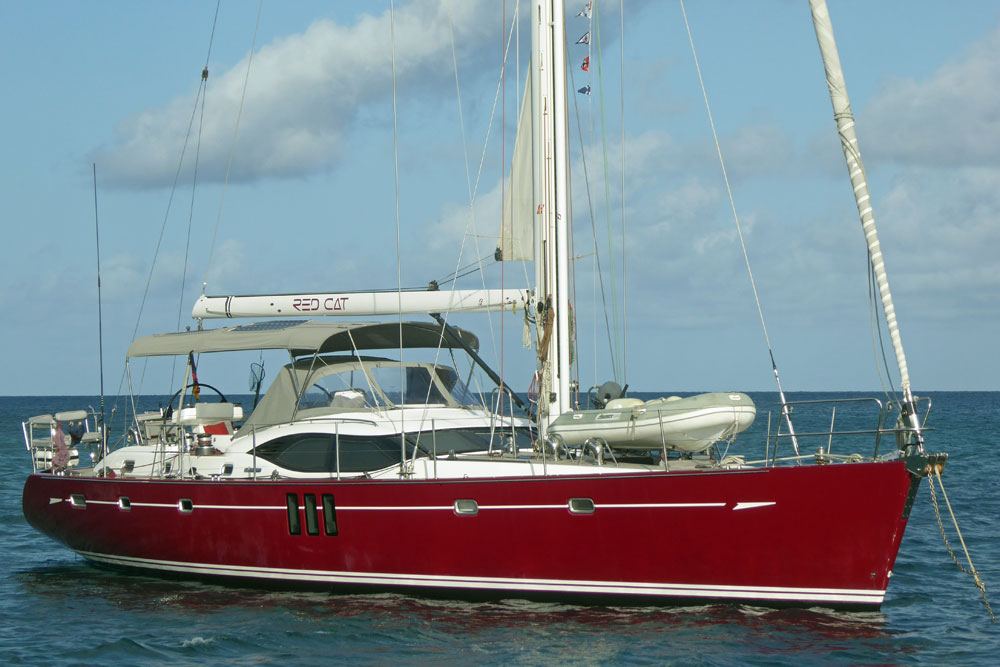

Other sailboats in the Oyster range include:
