The Dehler 35 CWS Sailboat
Specs & Key Performance Indicators

The Dehler 35 CWS aft-cockpit sloop was designed by E.G. van de Stadt and built in Germany by Dehler Yachts.

A Dehler 35 CWS moored fore and aftThe Dehler 35 CWS

Published Specification for the Dehler 35 CWS*

Underwater Profile: Bulb fin keel and spade rudder

Hull Material: GRP (Fibreglass)

Length Overall: 34'5" (10.5m)

Waterline Length: 29'2" (8.9m)

Beam: 10'10" (3.3m)

Draft: 6'3" (1.9m)

Rig Type: Fractional sloop

Displacement: 10,582lb (4,800kg)

Designer: E.G. van de Stadt

Builder: Dehler Yachts (Germany)

Year First Built: 1993

Year Last Built: 1998

Number Built: 230

'CWS' (Central Winch System) relates to a single, electrically powered winch in the cockpit which controls the sheets, halyards and reefing lines.


Published Design Ratios for the Dehler 35 CWS

1. Sail Area/Displacement Ratio: 19.6

2. Ballast/Displacement Ratio: 40.0

3. Displacement/Length Ratio: 190

4. Comfort Ratio: 22.3

5. Capsize Screening Formula: 1.9

Read more about these Key Performance Indicators...

Summary Analysis of the Design Ratios for the Dehler 35 CWS

1. A Sail Area/Displacement Ratio of 19.6 suggests that the Dehler 35 CWS will, in the right conditions, approach her maximum hull speed readily and satisfy the sailing performance expectations of most cruising sailors.

2. A Ballast/Displacement Ratio of 40.0 means that the Dehler 35 CWS will initially stand up reasonably well to her canvas in a moderate breeze, but she's likely to benefit from a reef in the main to avoid heeling uncomfortably in a gust.

3. A Displacement/Length Ratio of 190, tells us the Dehler 35 CWS is clearly a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer to a degree.

4. Ted Brewer's Comfort Ratio of 22.3 suggests that crew comfort of a Dehler 35 CWS in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not encouraging news for anyone prone to seasickness.

5. The Capsize Screening Formula (CSF) of 1.9 indicates that a Dehler 35 CWS would be a safer choice of sailboat for an ocean passage than one with a CSF of more than 2.0.

Check out the latest sailboats in the Dehler range...


More about the Dehler 35CWS...

The Dehler 35 CWS is a 10.5-meter yacht that features distinctive, autonomous lines and a sleek profile that gives it a sporty and elegant look. It also has a worldwide patented Dehler CSW system, which stands for Central Winch System. This system allows the helmsman to operate all the halyards and sheets from the cockpit, making it possible to sail the boat single-handedly or with a small crew.

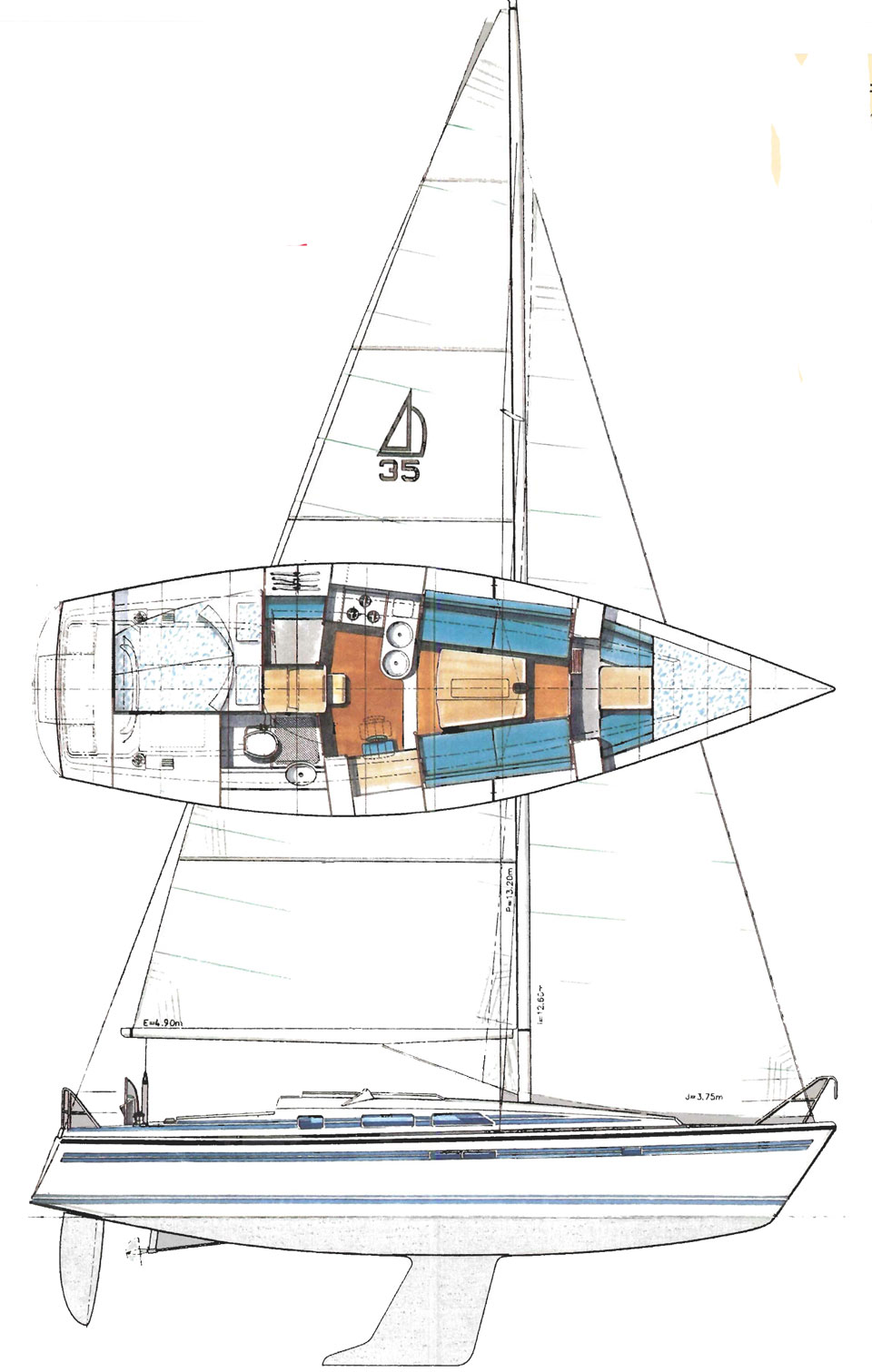

Dehler 35 CWS plansAccommodation & Sailplan

The Dehler 35 CWS is comfortable and spacious, with ample living space below deck, a forward cabin with full standing headroom, and a large aft cabin. It has a well-equipped galley, a navigation station, a dining area and a head with shower.

Accommodation
The Dehler 35 CWS can accommodate up to six people in two separate cabins and the saloon. The forward cabin has a double berth, a hanging locker, shelves and storage space under the berth. It also has an opening hatch and two portholes for ventilation and natural light.

The aft cabin has another double berth, a hanging locker, shelves and storage space under the berth. It also has an opening hatch and two portholes for ventilation and natural light.

The saloon has two settees that can be used as single berths, with storage space under them. The settees face each other across a folding table that can seat up to six people. The saloon has four opening hatches and four portholes for ventilation and natural light.

The galley is located on the port side of the saloon, next to the companionway. It has a two-burner stove with oven, a sink with hot and cold water, a refrigerator, drawers and cabinets for storage.

The navigation station is located on the starboard side of the saloon, opposite the galley. It has a large chart table with storage space under it, an instrument panel with VHF radio, GPS, depth sounder, speedometer, wind indicator and autopilot. The navigation station also has an opening hatch and two portholes for light.

The head is located on the starboard side of the boat, between the saloon and the aft cabin. It has a marine toilet, a sink with hot and cold water, a shower with drain pump, a mirror, shelves and cabinets for storage.

Hull and Deck
The hull of the Dehler 35 CWS is made of fibreglass reinforced plastic (FRP) with balsa core sandwich construction. It has an anti-osmosis treatment and an epoxy coating for protection.

The deck of the Dehler 35 CWS is also made of FRP with balsa core sandwich construction. It has an anti-slip surface and teak wood on the cockpit seats and floor.

The cockpit of the Dehler 35 CWS is spacious and ergonomic, with comfortable seats and backrests. It has a single wheel steering system with an integrated instrument panel on the console.

The deck of the Dehler 35 CWS has a wide and uncluttered foredeck with four opening hatches and eight portholes for ventilation and light.

The above text was drafted by sailboat-cruising.com using GPT-4 (OpenAI’s large-scale language-generation model) as a research assistant to develop source material; we believe it to be accurate to the best of our knowledge.
