The Hanse 400 Sailboat
Specs & Key Performance Indicators
The Hanse 400, a fractional sloop, was designed by Judel/Vrolijk & Co and built in Germany by Hanse Yachts.
Note the club-footed jib and foredeck-mounted sheet track on this Hanse 400.
Published Specification for the Hanse 400
Underwater Profile: Bulb fin keel and spade rudder
Hull Material: GRP
Length Overall: 40'2" (12.2m)
Waterline Length: 35'5" (10.8m)
Beam: 13'3" (4.0m)
Draft: 6'6" (2.0m)
Rig Type: Fractional sloop
Displacement: 18,739lb (8,500kg)
Builder: Hanse Yachts (Germany)
Year First Built: 2006
Owners Association: Hanse Owners Club

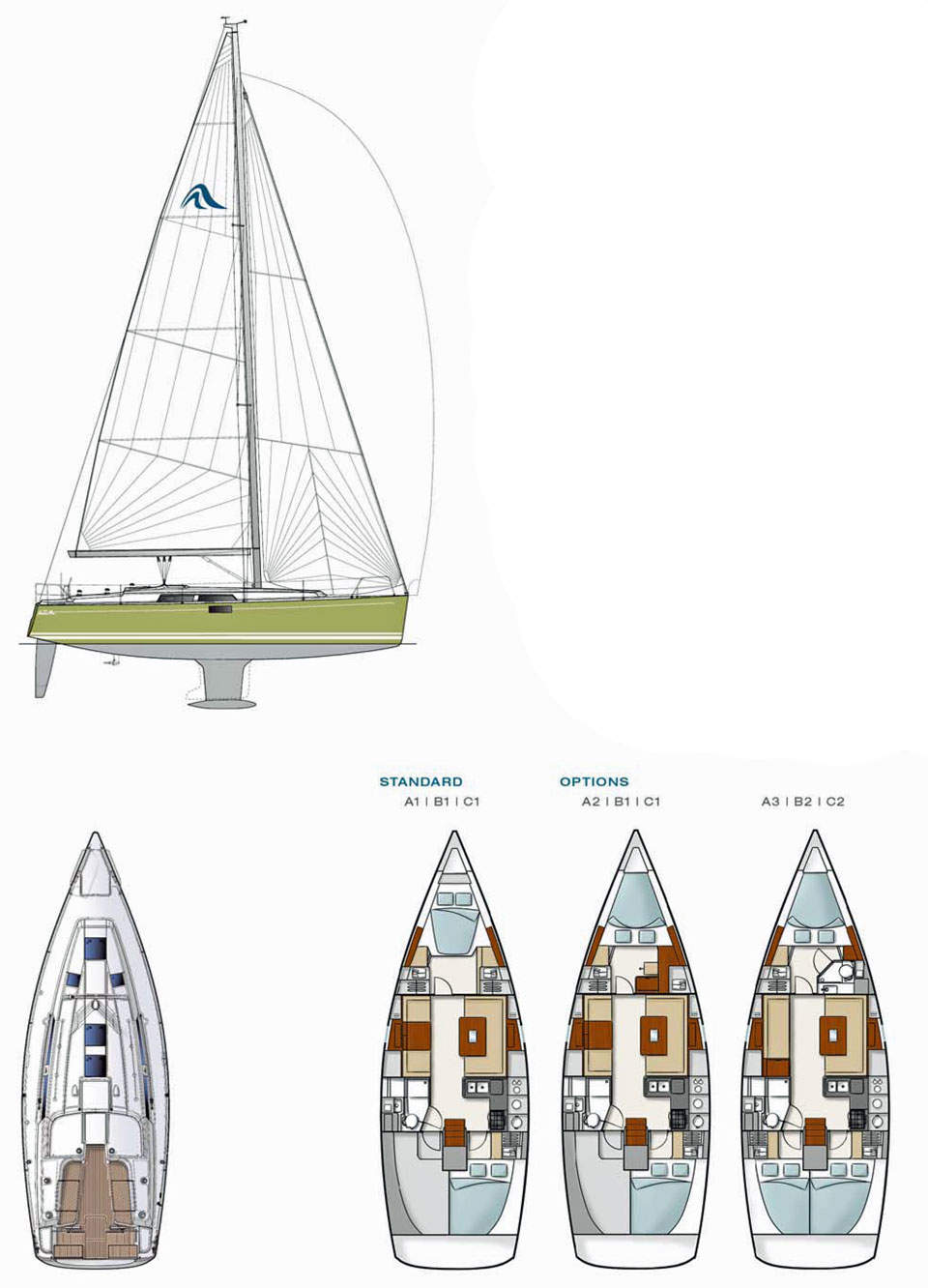

Hanse 400 Deck Layout, Accommodation Alternatives & Sailplan
Read more about the latest boats in the Hanse range...
Published Design Ratios for the Hanse 400
1. Sail Area/Displacement Ratio: 20.4
- Less than 16 would be considered under-powered;
- 16 to 20 would indicate reasonably good performance;
- Over 20 suggests relatively high performance.
2. Ballast/Displacement Ratio: 34.3
- Under 40: less stiff, less powerful
- Over 40: stiffer, more powerful
3. Displacement/Length Ratio: 188
- Under 100: Ultralight
- 100 to 200: Light
- 200 to 275: Moderate
- 275 to 350: Heavy
- Over 350: Ultraheavy
4. Comfort Ratio: 25.2
- Under 20 indicates a lightweight racing boat
- 20 to 30 indicates a coastal cruiser
- 30 to 40 indicates a moderate offshore cruising boat
- 40 to 50 indicates a heavy offshore boat
- Over 50 indicates an extremely heavy offshore boat
5. Capsize Screening Formula: 2.0
- Under 2.0 (the lower the better): Better suited for ocean passages
- Over 2.0: Less suited for ocean passages
read more about these Key Performance Indicators...
Summary Analysis of the Design Ratios for the Hanse 400
1. A Sail Area/Displacement Ratio of 20.4 suggests that, in the right hands, the Hanse 400 will have enough performance to leave many other sailboats of similar waterline length well astern.
2. A Ballast/Displacement Ratio of 34.3 would usually mean that the Hanse 400 would have a tendency to heel excessively in a gust, and need to be reefed early to keep her sailing upright in a moderate breeze.
However, as she has much of her ballast concentrated in a bulb at the foot of the keel, she's likely to be considerably stiffer than her published Ballast/Displacement Ratio might suggest.
3. A Displacement/Length Ratio of 188, tells us the Hanse 400 is clearly a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer dramatically.
4. Ted Brewer's Comfort Ratio of 25.2 suggests that crew comfort of a Hanse 400 in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not encouraging news for anyone prone to seasickness.
5. The Capsize Screening Formula (CSF) of 2.0 is on the cusp of suitability for an ocean passage, so venture offshore with caution.
