The Hanse 460 Sailboat
Specs & Key Performance Indicators

The Hanse 460, a fractional sloop, was designed by Berret-Racoupeau and built in Germany by Hanse Yachts.

A Hanse 460 sailboatA Hanse 460 flying a reacher on the optional Solent Rig

Published Specification for the Hanse 460

Underwater Profile: L-shaped bulb fin keel & spade rudder

Hull Material: GRP (Fibreglass)

Length Overall: 47'11" (14.6m)

Waterline Length: 42'10" (13.1m)

Beam: 15'9" (4.8m)

Draft: 7'5" (2.3m)*

Rig Type: Fractional sloop, with optional Solent Rig

Displacement: 27,690lb (12,560kg)

Ballast: 7,408lb (3,360kg)

Designer: Berret-Racoupeau

Builder: Hanse Yachts (Germany)

Year First Built: 2022

* Shallow draft version available: 5'9" (1.8m)

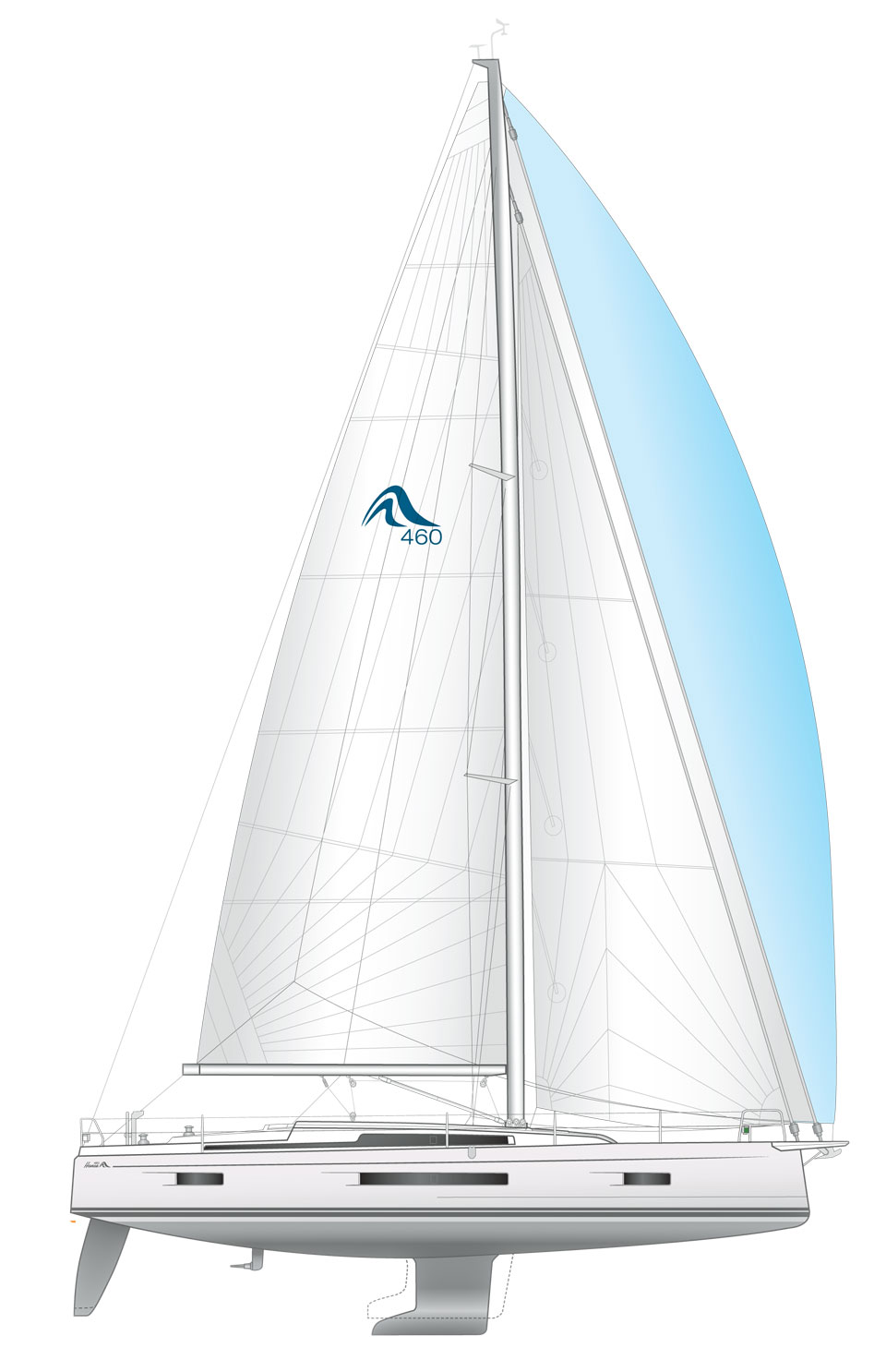

Hanse 460 sail plan & underwater profileHanse 460 Sailplan & Underwater Profile

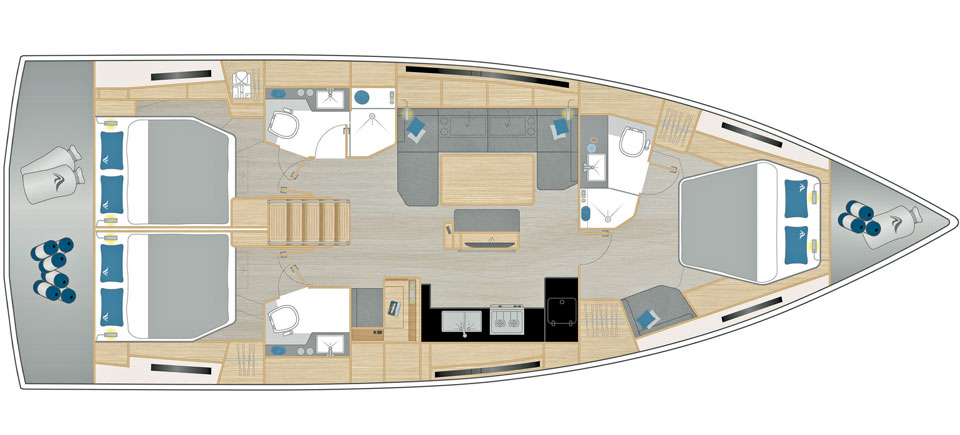

Hanse 460 Interior LayoutOne of the interior layout options for the Hanse 460


Read more about the latest boats in the Hanse range...


Published Design Ratios for the Hanse 460

1. Sail Area/Displacement Ratio: 21.5

  • Less than 16 would be considered under-powered;
  • 16 to 20 would indicate reasonably good performance;
  • Over 20 suggests relatively high performance.

2. Ballast/Displacement Ratio: 26.9

  • Under 40: less stiff, less powerful
  • Over 40: stiffer, more powerful

3. Displacement/Length Ratio: 158

  • Under 100: Ultralight
  • 100 to 200: Light
  • 200 to 275: Moderate
  • 275 to 350: Heavy
  • Over 350: Ultraheavy

4. Comfort Ratio: 24.6

  • Under 20 indicates a lightweight racing boat
  • 20 to 30 indicates a coastal cruiser
  • 30 to 40 indicates a moderate offshore cruising boat
  • 40 to 50 indicates a heavy offshore boat
  • Over 50 indicates an extremely heavy offshore boat

5. Capsize Screening Formula: 2.1

  • Under 2.0 (the lower the better): Better suited for ocean passages
  • Over 2.0: Less suited for ocean passages

read more about these Key Performance Indicators...

Summary Analysis of the Design Ratios for the Hanse 460

1. A Sail Area/Displacement Ratio of 21.5 suggests that, in the right hands, the Hanse 460 will have enough performance to leave most other sailboats of similar waterline length well astern.

2. A Ballast/Displacement Ratio of 26.9 would usually mean that the Hanse 460 would have a tendency to heel uncomfortably in a gust, and need to be reefed early to keep her sailing upright in a moderate breeze.

However, as she has much of her ballast concentrated in a bulb at the foot of her L-shaped keel, she's likely to be considerably stiffer than her published Ballast/Displacement Ratio might suggest.

3. A Displacement/Length Ratio of 158 tells us the Hanse 460 is a light displacement sailboat. If she's loaded with too much heavy cruising gear her performance will suffer to a degree.

4. Ted Brewer's Comfort Ratio of 24.6 suggests that crew comfort of a Hanse 460 in a seaway is similar to what you would associate with the motion of a coastal cruiser with moderate stability, which is not the best of news for anyone prone to seasickness.

5. The Capsize Screening Formula of 2.1 tells us that a Hanse 460 would not be as good a choice of sailboat for ocean passage-making, owing to the increased risk of capsize in strong winds and heavy seas when compared to a sailboat with a CSF of less than 2.0.

Other sailboats in the Hanse range include:
